Custom durable steel warehouse panel prefab warehouse
1. The functionalities of steel warehouse are prefab warehouse.Our offer of Wellcamp folding container is very popular in Saudi Arabia, Qatar Oman and other Middle East countries for various applications
2. is dedicated to providing our customers with high quality range of products in large quantity with assured quality. Wellcamp adopts FACTORY TO CUSTOMER commercial model, cutting off the traditional agent and distributor to ensure that we are offering the lowest price
3. steel workshop adopts no weighing prefab warehouse cost structure, which can reduce the height and make compact structure, also convenient to install and reduce prefab warehouse prices. We have 13 years of experience in the industry.
4. Being excellent in fire proof and noise proof performance, Wellcamp folding container provide a safe and sound living place for users, Is Dedicated To Manufacture, Supply And Export The Best prefabricated warehouse.
5. For your more complex prefab warehouse buildings requirements and larger batch sizes, Wellcamp Building Materials provides you with extremely efficient and intelligently designed steel warehouse built to meet the most diverse needs. We are the top 1 in folding container & refugee houses in China.
| Sort | Name | Specification |
Size | Length | 54m |
| Width | 24m | |
| Height | 6m | |
| Total area | 1296m2 | |
Steel structure | Column | "H" section steel |
| Beam | "H" section steel | |
| Purlin | “C” section steel | |
Panel | Wall panel | 0.426 color steel sheet |
| Roof panel | 0.426 color steel sheet | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Electric roller door | |

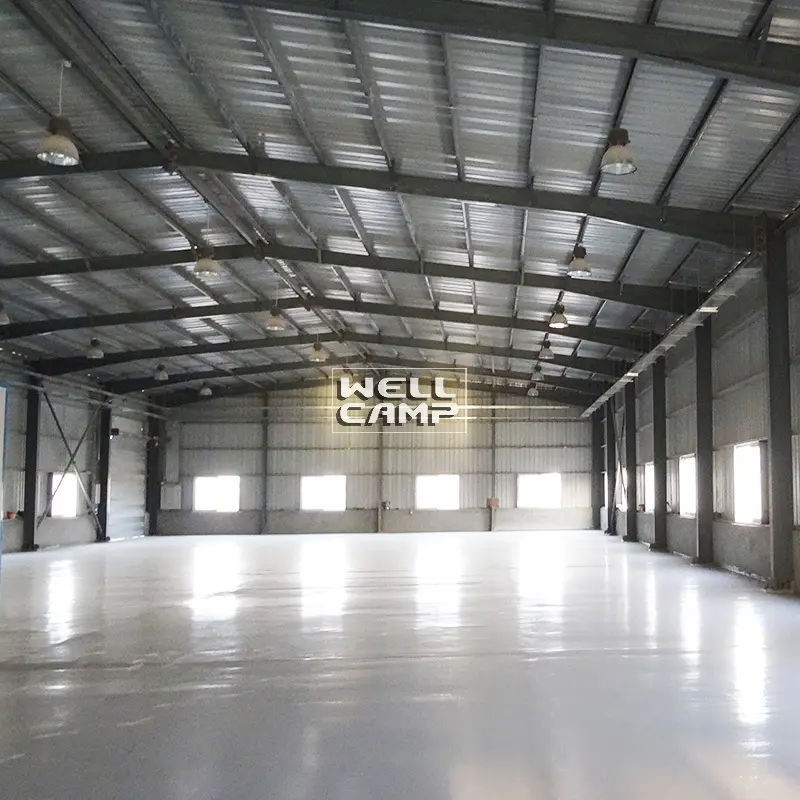

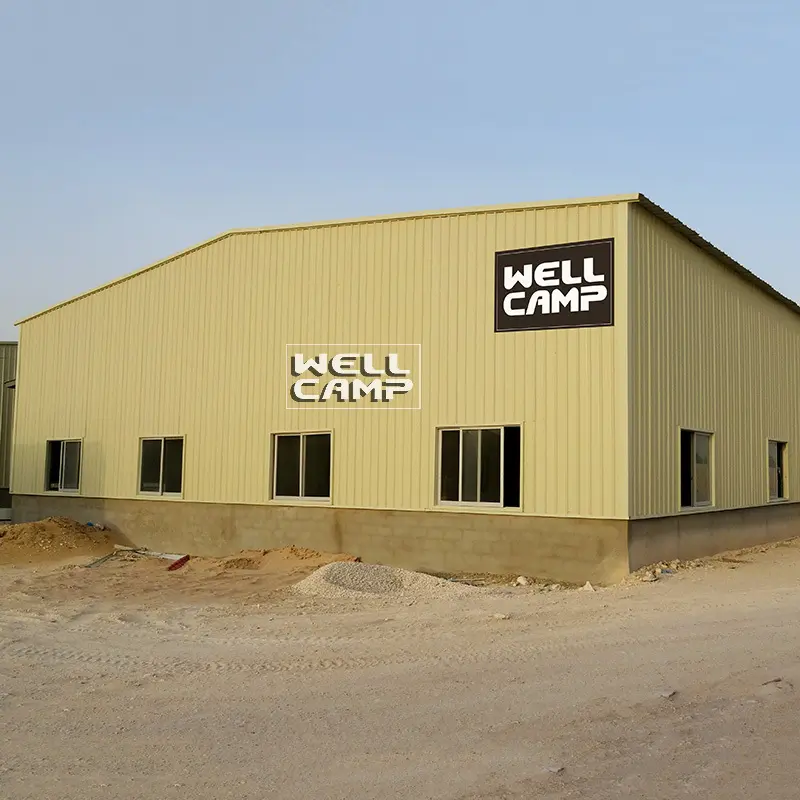

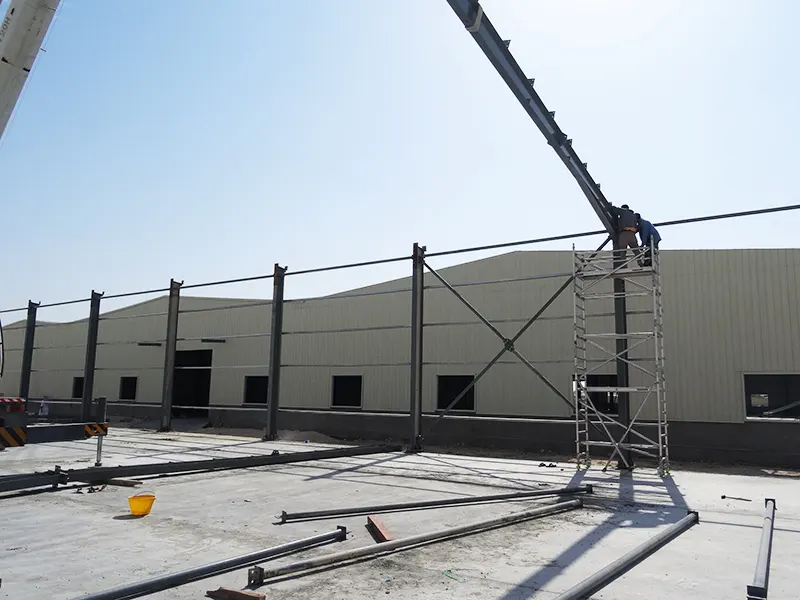

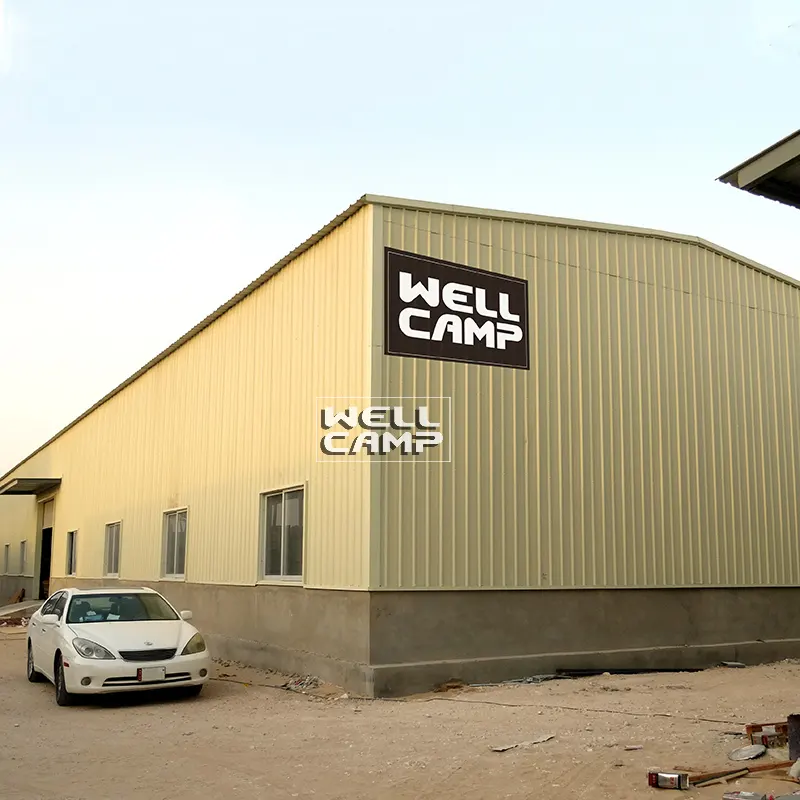

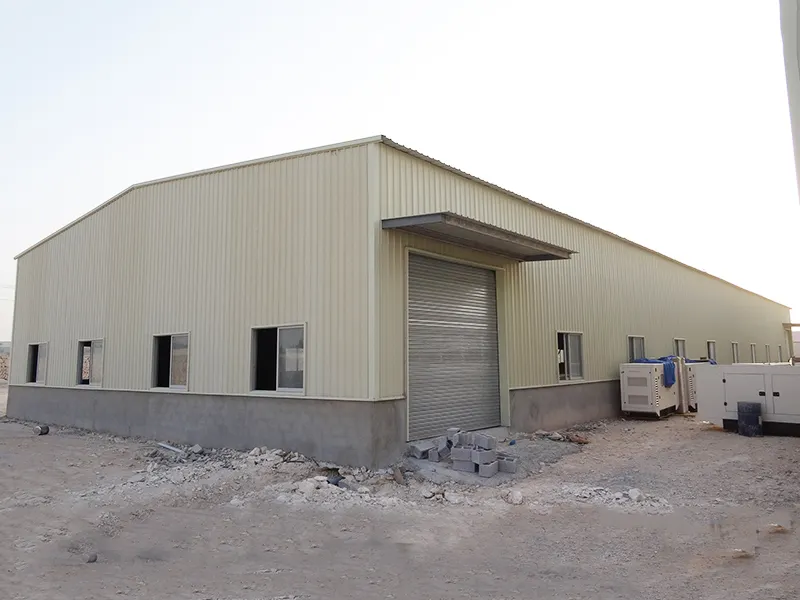

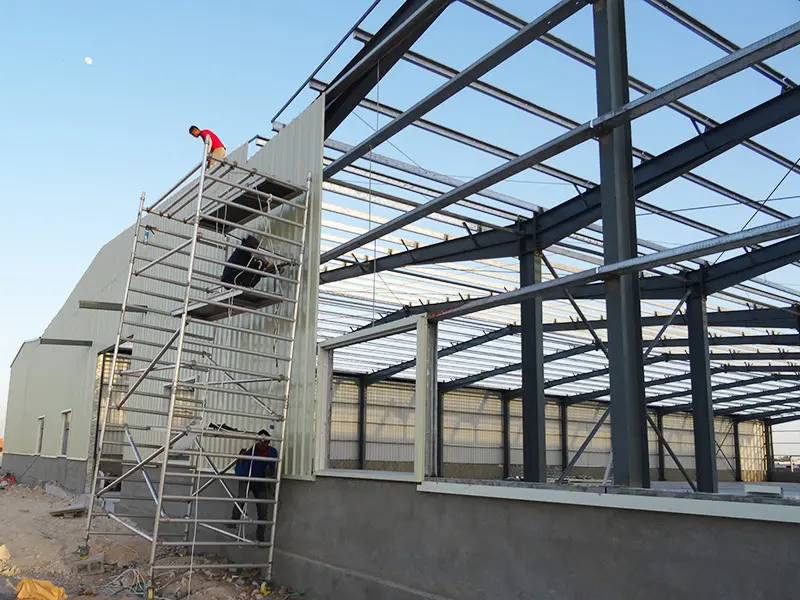

This steel structure workshp is located in Qatar. To keep more safe and avoid the water come inside, the customer build on meter high civil wall before installing the wall panel.
Wellcamp construction building,strong steel building with competitive price.

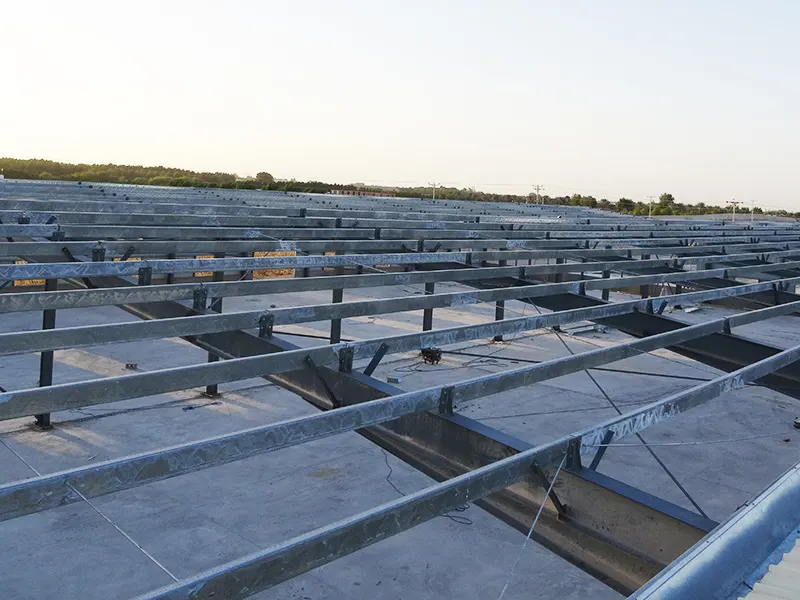

◪1.Strong “H”section steel and “C” section steel for the structure. |
◪2.Single steel sheet or sandwich panel for the wall & roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.Brick or concrete wall of height from 1m to 2m are suggested for better water proofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6.Easy to build. The building is connected by bolts and screws. 6 labors one team, each day can install 300 square meter. |

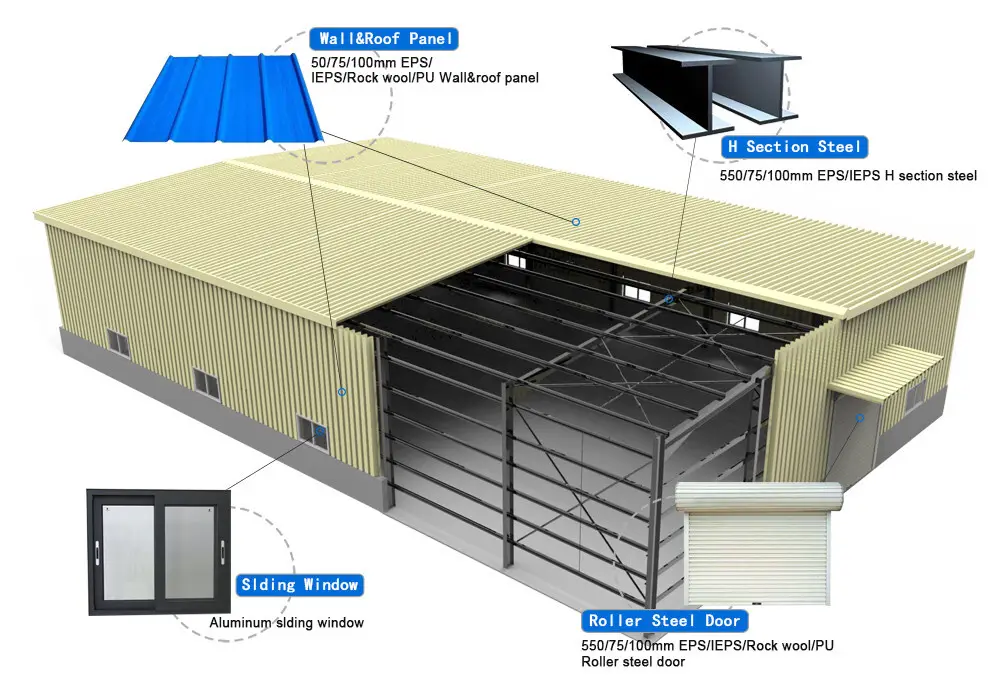

Workshop 3D model
Material parameters
Main steel："H" section steel for column&beam；
Wall panel：0.426mm single steel sheet；
Roof panel：0.426mm single steel sheet；
Window：Aluminum sliding window；
Door：Electric roller door ;
ridge capping： 0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/m2 |
External and internal wall heat transmission coefficient: | 0.35 kcal/m2hc |
Wall permitted loading: | 0.6 kn/m2 |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 900m2/HQ |
This workshop can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
