Steel Structure Frame Building for Goods, Wellcamp S-21
| Sort | Name | Specification |
Size | Length | 20m |
| Width | 10m | |
| Height | 5.8m | |
| Total area | 300m2 | |
Steel structure | Column | "H" section steel |
| Beam | "A" shape beam | |
| Purlin | "C" section steel | |
Panel | Wall panel | NO |
| Roof panel | 0.426mm single steel sheet | |
Accessories | Window | NO |
| Door | NO | |

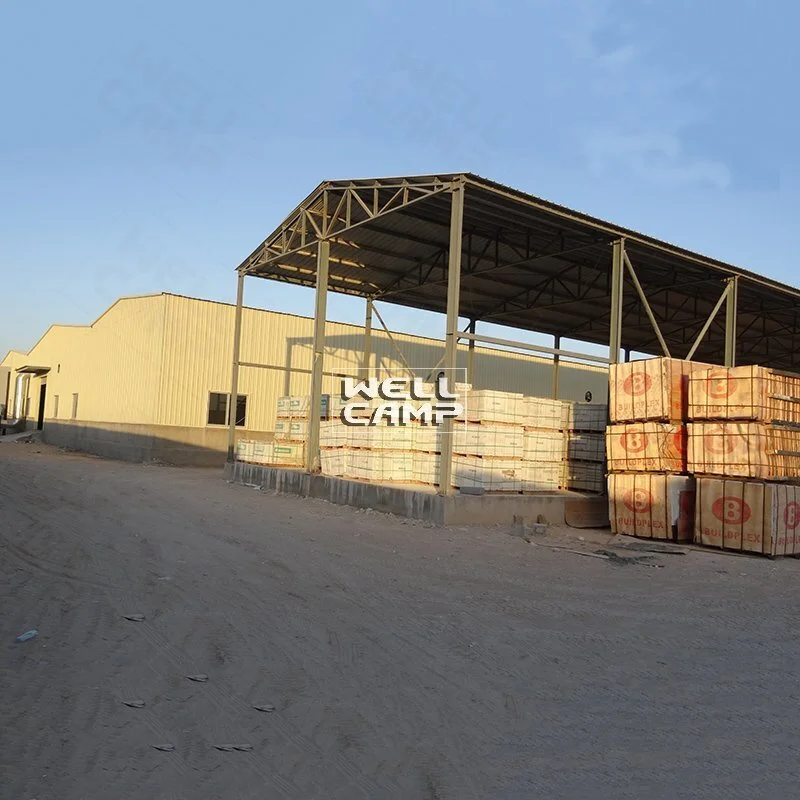

Qatar Project. This prefab steel shed is the storage area for the materials to avoid the sunshine and rain.
It is an economic design with no wall panel, windows and doors. Wellcamp light steel structure housing, light structure warehouse.
◪1.The structure is strong “H” section steel and “C” section steel. |
◪2.Single steel sheet or sandwich panel for the wall and roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.The height of the brick or concrete wall from 1m to 2m is suggested, for a better waterproofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6.Easy to build. The building is connected by bolts and screws. 6 labors constitute one team, can install areas of 300 square meters each day. |
Workshop 3D model
Material parameters
Main steel："H" section steel for column & beam；
Wall panel：NO；
Roof panel：0.426mm single steel sheet；
Window：NO；
Door：NO；
Ridge capping： 0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 300㎡/HQ |
This workshop can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
