WELLCAMP, WELLCAMP prefab house, WELLCAMP container house panel prefab shipping container homes for sale refugee house for dormitory
1. The diverse features of prefab shipping container homes for sale bring us more and more customers. The product is easy to move and install
2. This product is affordable. This means that, by saving money on property fees and construction, one can invest more money into making the home comfortable, eco-friendly, and technologically-advanced. The product is wind-resistant and can withstand more pressure
3. The quality standards of this product are based on government and industry requirements. It is frequently displayed in the international exhibition, such as the Canton Fair
4. The product is the primary choice of customers worldwide for its high performance. The product features a high anti-deformation property
5. The quality of the product is secured by an efficient production test team. The product helps save energy and cost in the process of installation
| Sort | Name | Specification |
Size | Length | 10m |
| Width | 10m | |
| Height | 3m | |
| Total area | 1002m² | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
| Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Double opening steel door | |

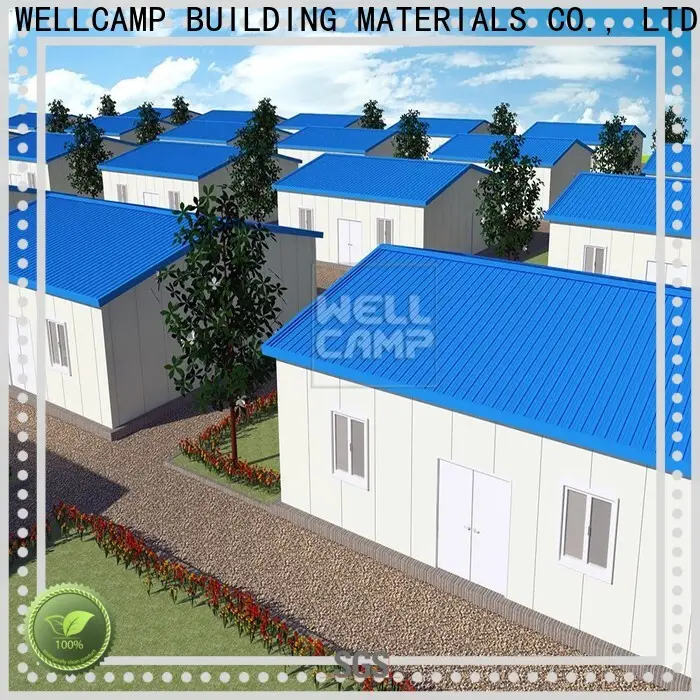

3This is the 3D drawing for the school project in the disaster area. Totally 100 sets prefab house are built. Each classroom covers an area of 100 square meters
In order to facilitate evacuation shelter, besides four windows, we designed two double opening steel doors and two single opening doors
with a strong smart house at competitive prices.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2. T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7. T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：Square tube steel for column & beam；
Wall panel：5mm EPS Sandwich panel；
Roof panel：50mm EPS Sandwich panel；
Window：Aluminum sliding window；
Door：Steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is a highly qualified manufacturer of modular prefabricated house suppliers and has been widely renowned for its strong manufacturing capacities. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has advanced and sophisticated equipment coupled with superb technology to ensure good quality.
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has taken macro measures to improve the R&D environment.
3. With the great advantage in talent and research, Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has become one of the biggest prefab shipping container homes for sale production base in China. In the days to come, we will continue to adhere to the quality policy of “achieve innovation”. We will continue to meet the needs of our customers, continuously innovate in research and development, and focus on customized product requirements.
