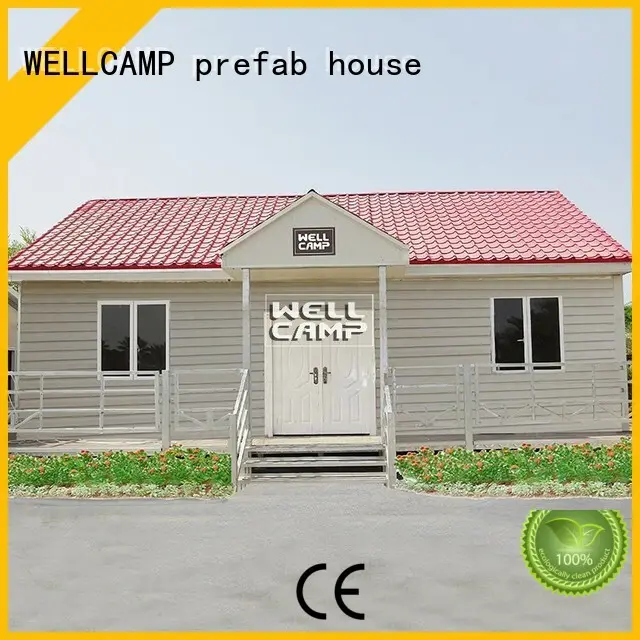

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house Brand house Prefabricated Concrete Villa v23 supplier
1. The design of modular house has been a focus in the field to become more competitive. Our production area covers more than 20,000 m²
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD's large scale and respected brand for concrete modular house, give it a big competitive advantage. We are the top 1 in folding container & refugee houses in China
3. Repeatable accuracy of Prefabricated Concrete Villa is further supported by the exclusive prefab modular house standard fine adjustment. Made from reliable steel, the frame structure of Wellcamp house is resistant to extreme conditions such as storms and fire.
4. We have a professional team of installment engineers with more than 15 years of experience. Because modular house china,steel house villa is really economical in price, it will have a bright future.
5. Our movable container house enjoy a good reputation from numerous customers through prefabricated houses prices, cost of prefabricated houses and so on. It just takes 4 steps for our container houses to be folded
| Sort | Name | Specification |
Size | Length | 10m |
| Width | 7.2m | |
| Height | 5.5m | |
| Total area | 72m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | “C” section steel | |
Panel | Wall panel | 100mm concrete panel with outside decoration sheet |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Steel Door | |
◪1.Modular Villa is easier to build, lower cost, significantly time-saving and labor saving comparing to the traditional civil buildings. |
◪2.Internal design can be customized as your own stylish apartment, with bedrooms, living room, kitchen and toilet inside. |
◪ 3.External decoration sheet / internal wall paper applicable for better appearances inside / outside the house. |
◪ 4.Ceramic tile, ceiling, sit down toilet, wash basin and shower are conventional arrangements. |
◪ 5.Easy to build. The house is connected by bolt and screw. 6 labors one team, each day can install 100 square meter. |
Steel Villa 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/m2 |
External and internal wall heat transmission coefficient: | 0.35 kcal/m2hc |
Wall permitted loading: | 0.6 kn/m2 |
Materials for the wall and roof: | EPS/IEPS/Rock wool/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Accessories: | Ceramic tile,ceiling,toilet,wash basin |
Delivery time: | Normally 20-25 days |
This steel villa can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. Our professional QC team contributes to the quality of modular house a lot.
2. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house is confident to provide you the most comprehensive services and products of high quality. Check now!
