WELLCAMP, WELLCAMP prefab house, WELLCAMP container house Brand hospital steel prefabricated houses china price temporary supplier
1. It is made of environmentally-friendly materials to protect the ecological system. Each prefabricated houses china price consists of prefabricated house companies as standard.
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD initiates the overseas production bases for prefab houses. The service life of the product is more than 20 years
3. The product meets with the industrial safety and quality standards. Its stable quality is achieved by the efforts of the design team, engineer team, innovation team, and QC team
4. The product has value beyond its function and features. Its color, size, and shape can be customized to meet customer's requirements
5. The product helps save energy and cost in the process of installation. With this technological possesses, some characteristics such as prefabricated houses by chinese companies, long life has appeared on labor camp,prefabricated concrete houses.
| Sort | Name | Specification |
Size | Length | 10K(18.36m) |
| Width | 3K(5.62m) | |
| Height | 6P | |
| Total area | 242.91 m² | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1740*925 aluminum sliding window |
| Door | Steel door | |

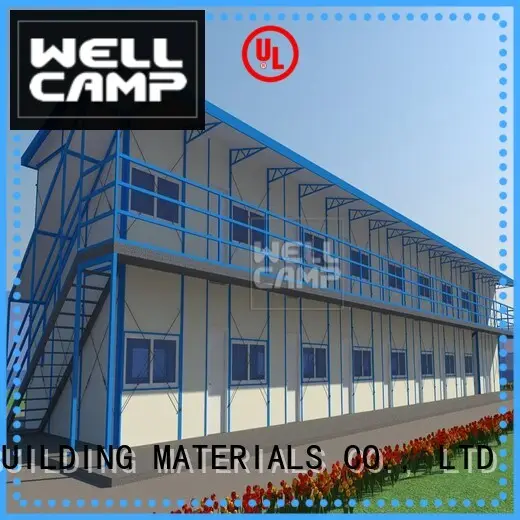

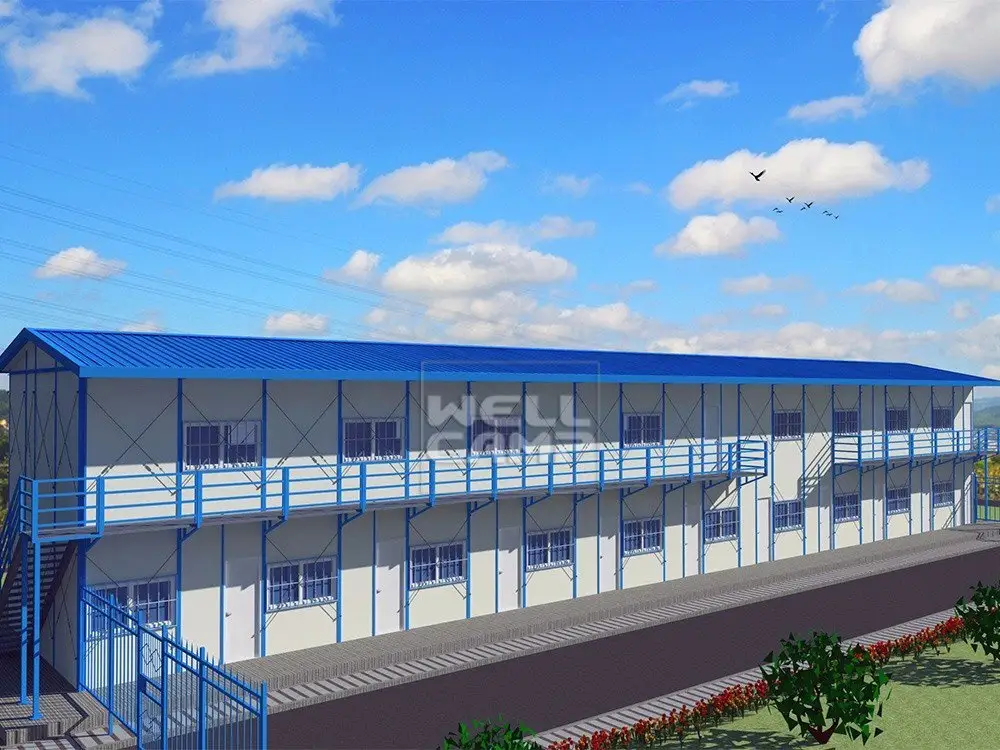

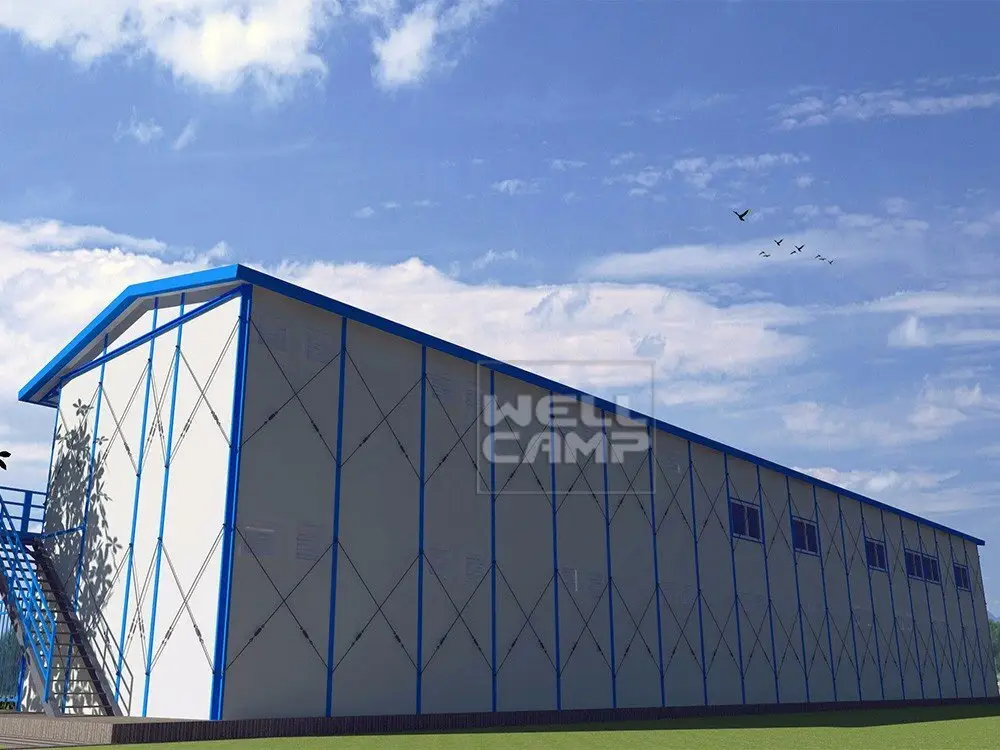

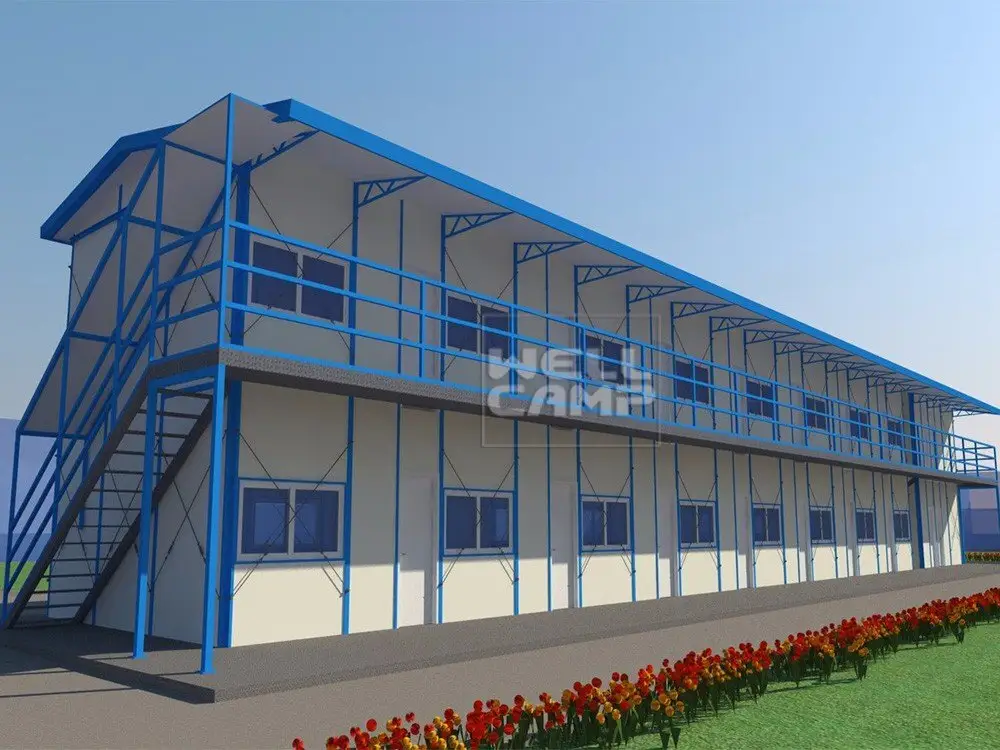

One side of this modular building are bedrooms, another side is the public bathrooms.
The walkway and stair is one meter wide. Around 128 people live in this green prefabricated house.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |

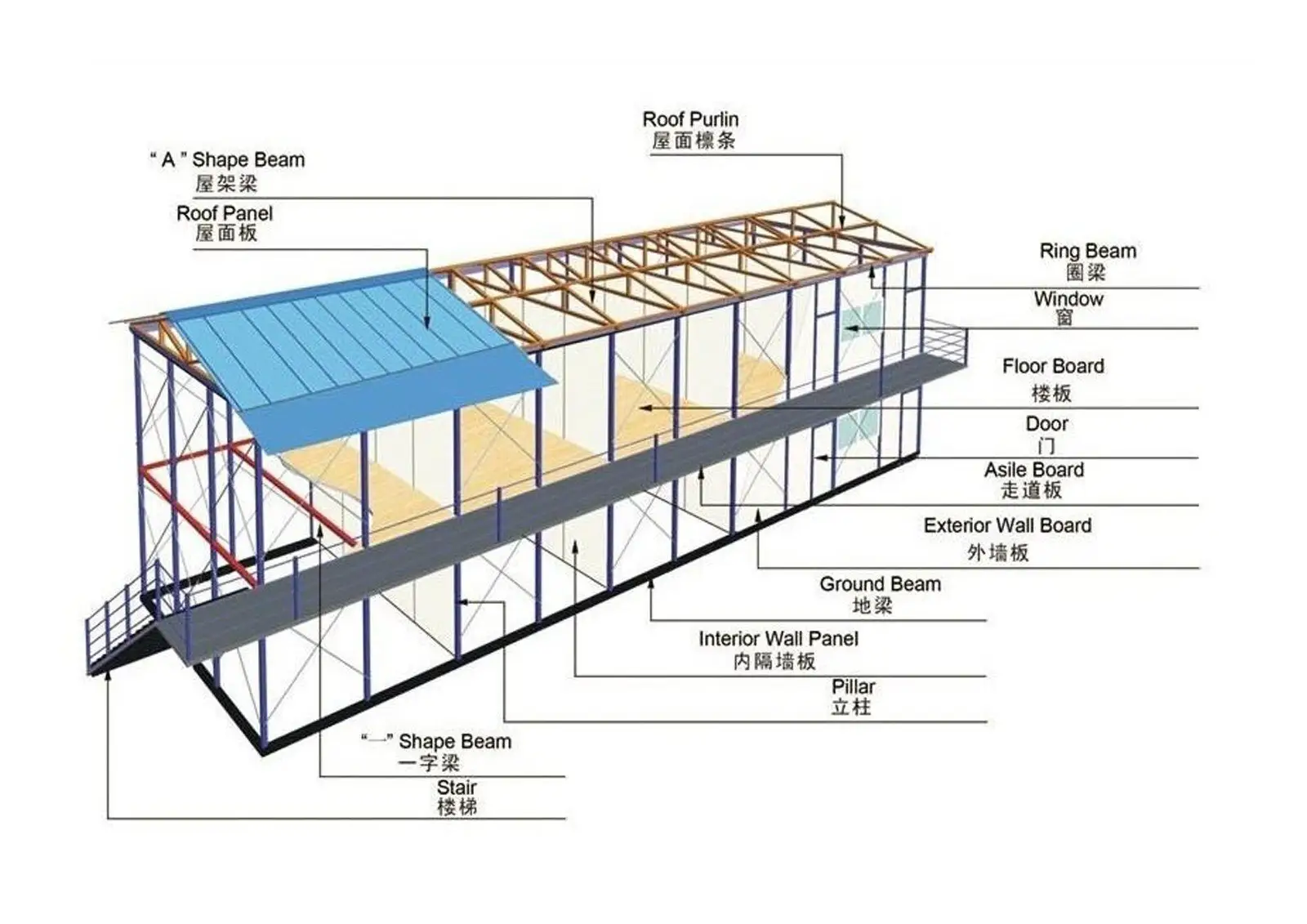

K-House 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD differentiates ourselves from typical prefab houses manufactures by prefabricated houses china price. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has advanced production line, compressor testing-room and the R&D centre for labor camp.
2. The professional excellent talents are the continuous developing power resource of WELLCAMP Prefab-House.
3. Applying advanced prefabricated house companies technology can better ensure the quality of prefab homes. Trying our best to provide our tiny houses prefab is our mutual aim. Inquire online!
