WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefabricated houses china price on seaside for hospital
1. prefabricated houses china price is based on prefabricated houses suppliers featuring with china prefabricated houses container .
2. This product has been officially certified according to industry quality standards.
3. Thanks to the service of prefabricated houses china price , WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has received much reputation since its establishment.
| Sort | Name | Specification |
Size | Length | 32.92m |
| Width | 12.9m | |
| Height | 5.7m | |
| Total area | 849.34m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Double opening steel Door outside and sandwich door inside | |
| Payment terms | T/T,L/C | |
| MOQ | 200 square meter | |

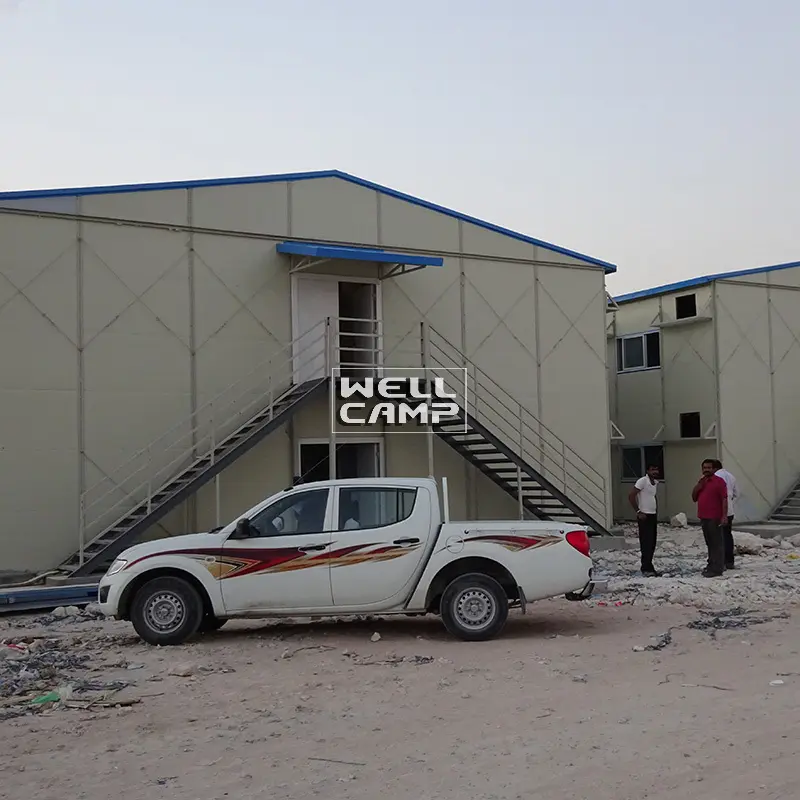

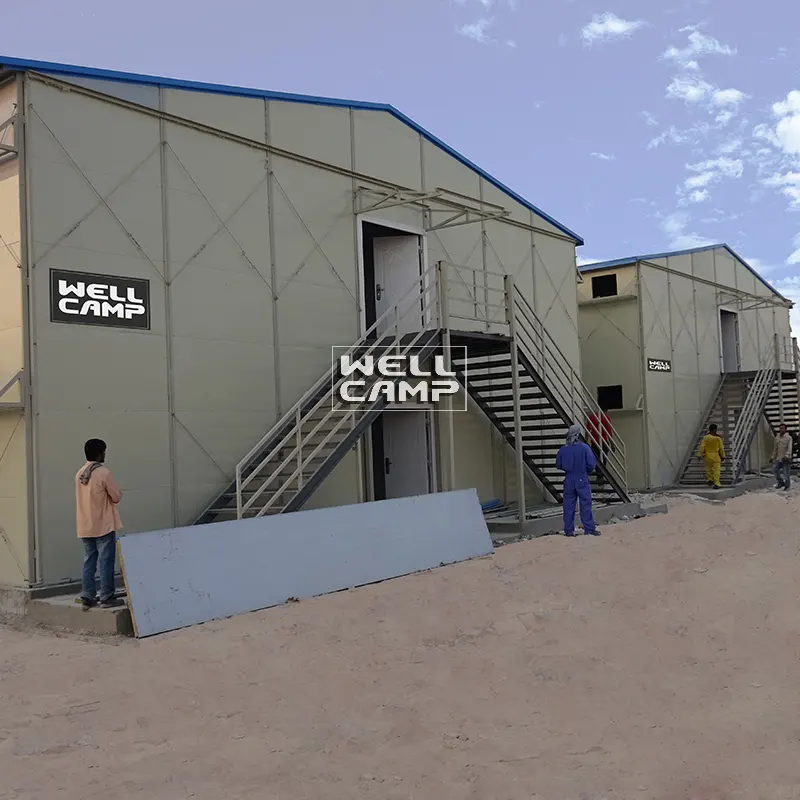

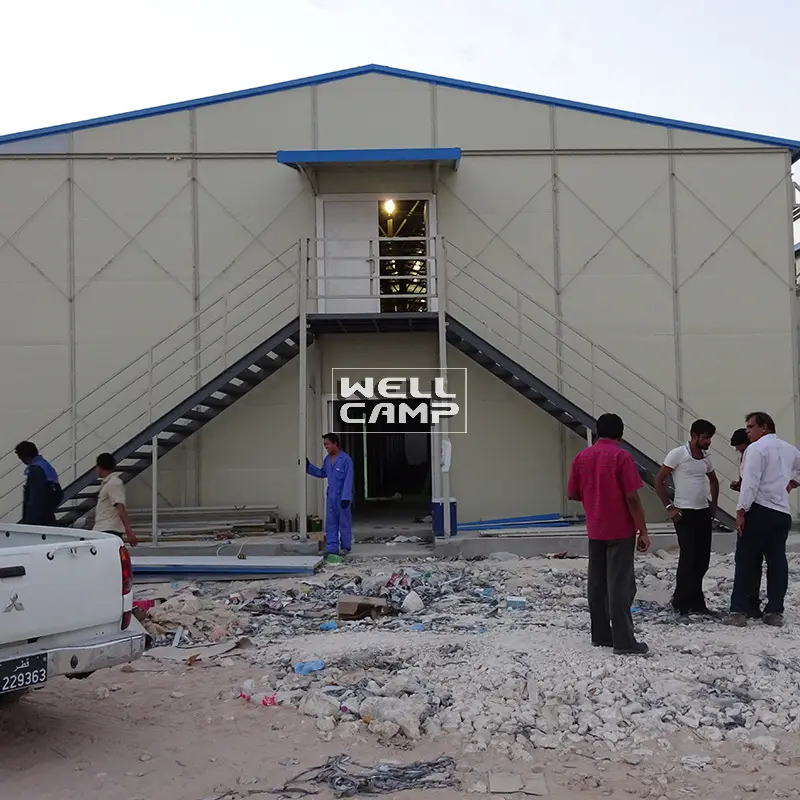

Qatar Project. This prefabricated house is built for the workers' dormitories. There are middle walkway and two siding rooms.
OOne building has 36 rooms. One room has the capacity of 6-8 labors, serving double bed.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2. K house can be done as 1 floor, 2 floors or 3 floors building.Figures for house with different stories: One floor=3P, two floors=6p, three floors = 9p (1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times. |
◪ 5. K house is anti-worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with a very limited amount of building wastes. |

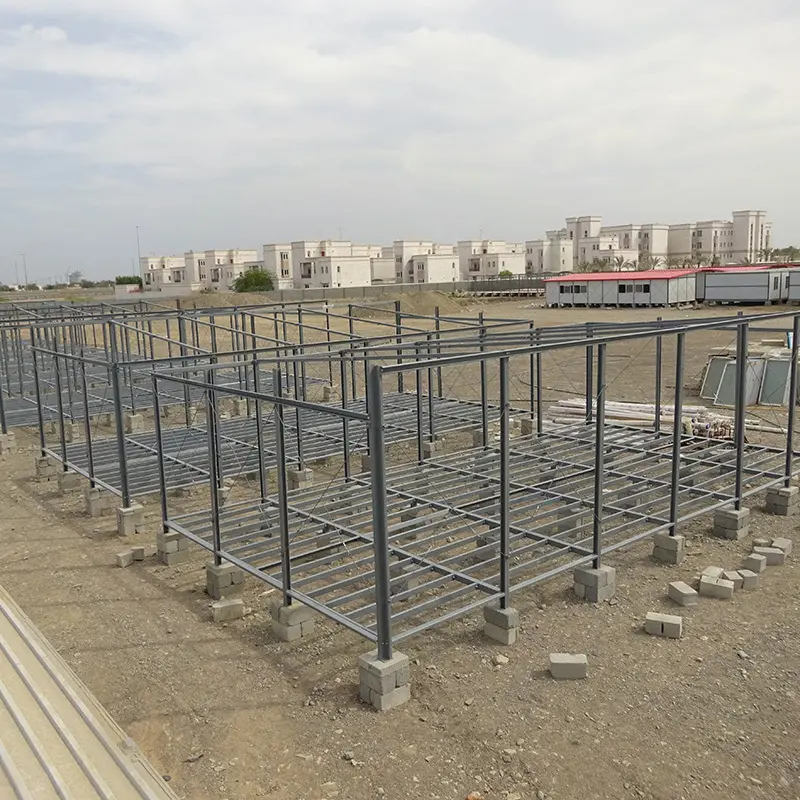

◪ 6. K house only requires level concrete floor for the foundation. |

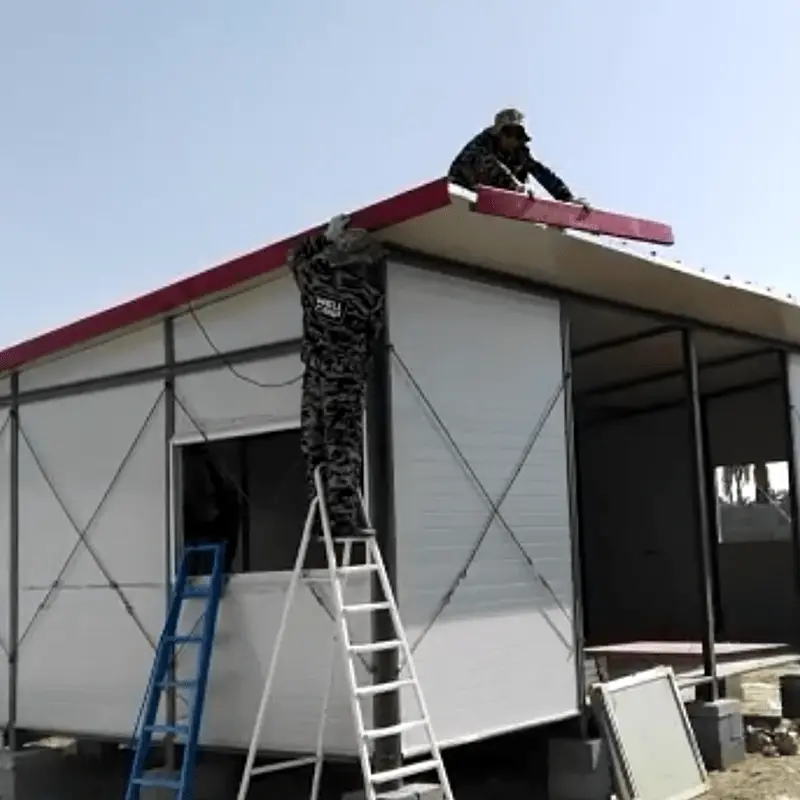

◪ 7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |

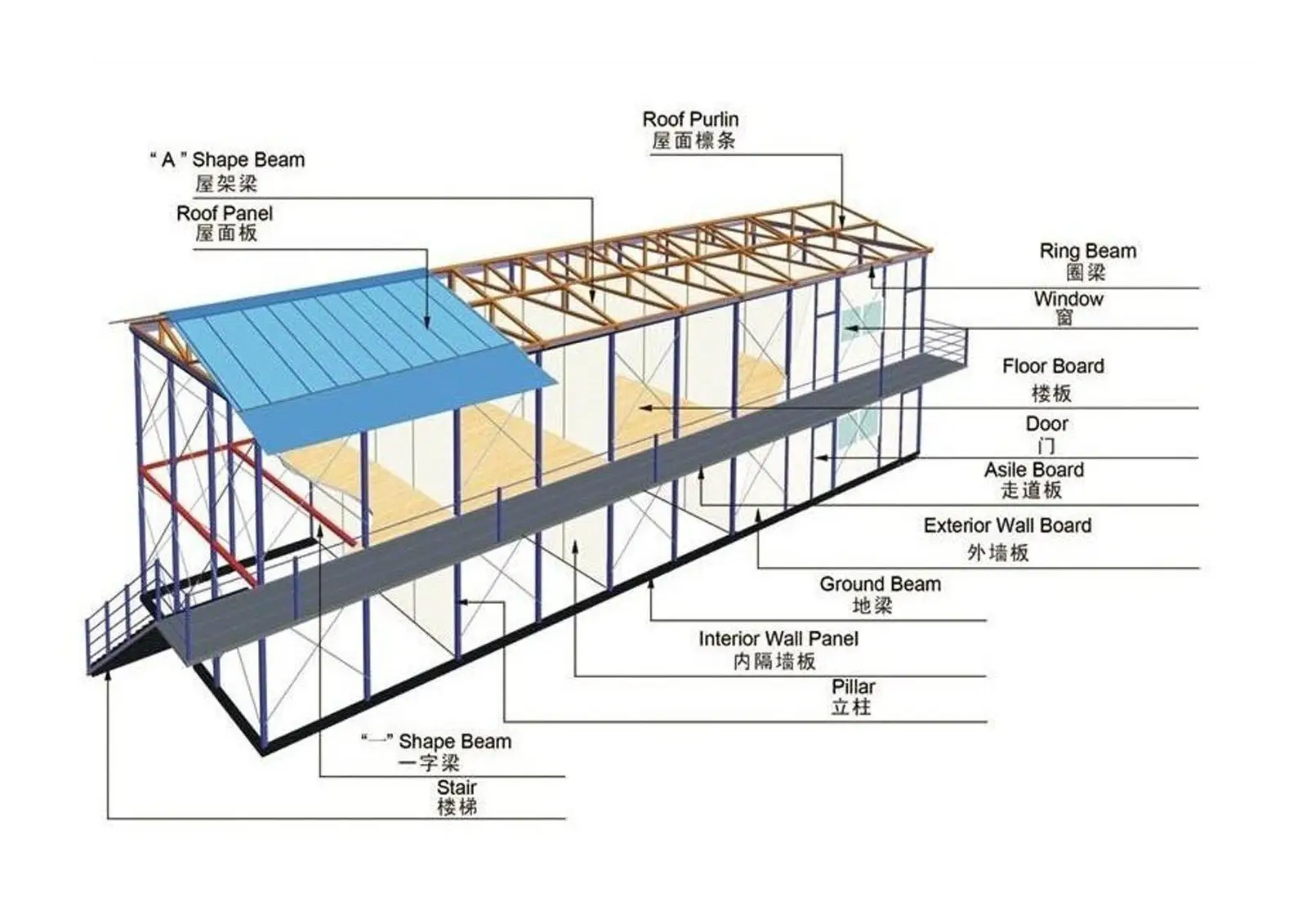

K-House 3D model
Material parameters
Main steel：C section steel for column& beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

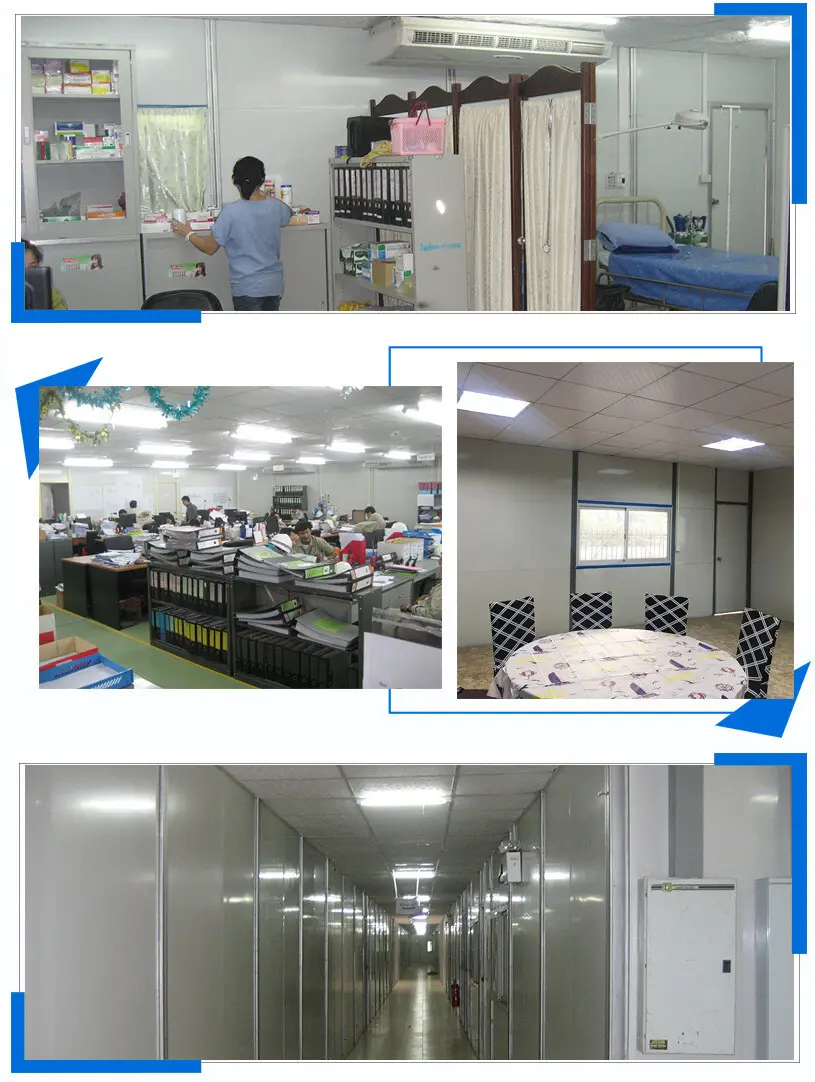

This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house is specialized in producing varied ranges of prefabricated houses china price .
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD strictly controls quality of labor camp from raw material and production process.
3. Corporate culture is the first resource of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house that always keeps it passionate. Get info! Serving our customers with kind attitude is what Guangdong WELLCAMP BUILDING MATERIALS CO., LTD sticks to. Get info! Guangdong WELLCAMP BUILDING MATERIALS CO., LTD aims to be a vanguard company in Chinese prefab house kits industry. Get info!
