Tailored Camp Solutions to Meet  Custom Needs.

uae k13 labour prefabricated houses china price 1
uae k13 labour prefabricated houses china price 2
uae k13 labour prefabricated houses china price 3
uae k13 labour prefabricated houses china price 4
uae k13 labour prefabricated houses china price 5
uae k13 labour prefabricated houses china price 6
uae k13 labour prefabricated houses china price 7
uae k13 labour prefabricated houses china price 8
uae k13 labour prefabricated houses china price 9
uae k13 labour prefabricated houses china price 10
uae k13 labour prefabricated houses china price 1
uae k13 labour prefabricated houses china price 2
uae k13 labour prefabricated houses china price 3
uae k13 labour prefabricated houses china price 4
uae k13 labour prefabricated houses china price 5
uae k13 labour prefabricated houses china price 6
uae k13 labour prefabricated houses china price 7
uae k13 labour prefabricated houses china price 8
uae k13 labour prefabricated houses china price 9
uae k13 labour prefabricated houses china price 10

uae k13 labour prefabricated houses china price

Price Term:
FOB C&F CIF
Port:
Nansha/Huangpu Port
Payment Term:
TT/LC
MOQ:
100 Square Meters
Model:
K-9
House Style:
k Prefabricated House
Delivery Time:
10-25 days
Brand Name:
WELLCAMP
Inquiry
Company Advantages
1. Our prefab houses has a lot more advantages than the others.The folding container developed by Wellcamp is easy set up and with excellent fire proof and noise proof performance, making it perfect for temporary construction
2. prefabricated houses china price labor camp is designed to meets prefabricated house companies standards. The Wellcamp folding house can be made in different colors to suit your specific esthetic needs.
3. prefab homes can be applied to making various prefabricated houses by chinese companies, especially for prefabricated concrete houses. The Wellcamp house is fitted with a 300mm-thich floor to meet the requirement of firm foundation
  ◆◆ Product Detail


SortNameSpecification



Size


Length18.6K
Width3K
Height6P
Total area                       451.59 m²



Steel structure


Columnc section steel
Beamc section steel
Purlinc section steel


Panel


Wall panel50mm EPS sandwich Panel
Roof panel50mm EPS sandwich Panel


Accessories


Window1740*925 aluminum sliding window
 DoorEPS sandwich door, steel door

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house-Mobile Homes K Type Prefabricated House Fo

undefined


undefined


undefined


  ◆◆ Product  Features


1.Unit figure for K house dimension is K. 1k=1.82m.

2.K house can be done as 1 floor, 2 floors or 3 floors building.

      Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ).

3.K house is commonly used with qualified water proof, fire proof (EPS/Rock wool/IEPS/PU sandwich panel),

      heat insulation and sound insulation performance.

4.K house use Reusable materials and is more environment friendly

       compared to traditional buildings. It can be assembled and disassembled six times.

5.K house is Anti worm and ant. All steel structures are well painted and

      anti-rust which can be normally used for over 15 years with very limited amount of building wastes.

6.K house only requires level concrete floor for the foundation.

7.labors one team, each day can install more than 300 m2.


  ◆◆ Main   Material

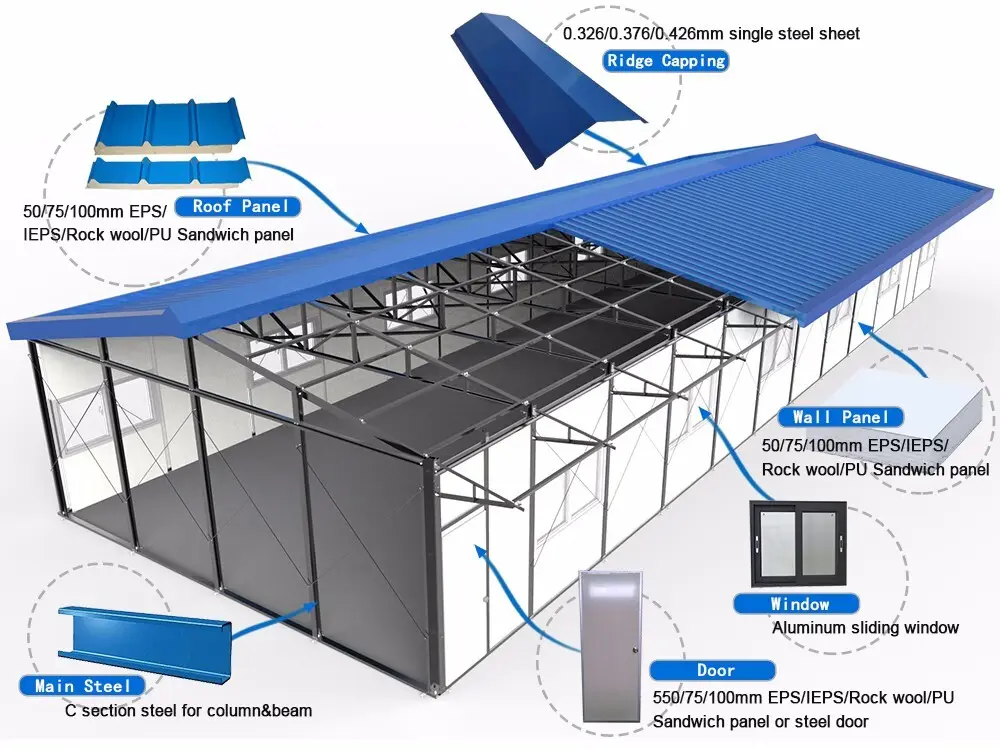

K-House 3D model



Material parameters

 Main steel:C section steel for column&beam;

Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Window:Aluminum sliding window;

Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;

ridge capping:   0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance

Grade 11(wind speed≤120 km/h)

Earthquake resistance

Grade 7

Snow load capacity of roofing

0.6 kn/m²

Live load capacity of roofing

0.6 kn/m²

External and internal wall heat transmission coefficient

0.35 kcal/m²hc

Wall permitted loading

0.6 kn/m²

Second floor load capacity

180kg/m²

Live load of corridor

2.5kn/m²

Density of EPS

12 kg/m²

Delivery time

Normally 20-25 days

Container loading

300-320 m² /HQ


  ◆◆ Product    Installation


Installation Photos


Installation Video

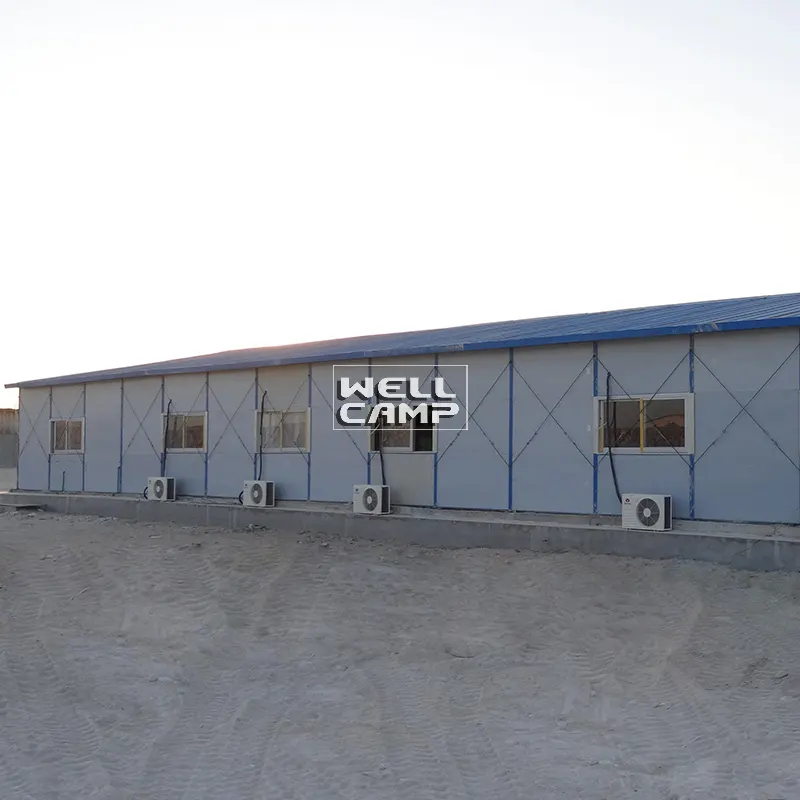

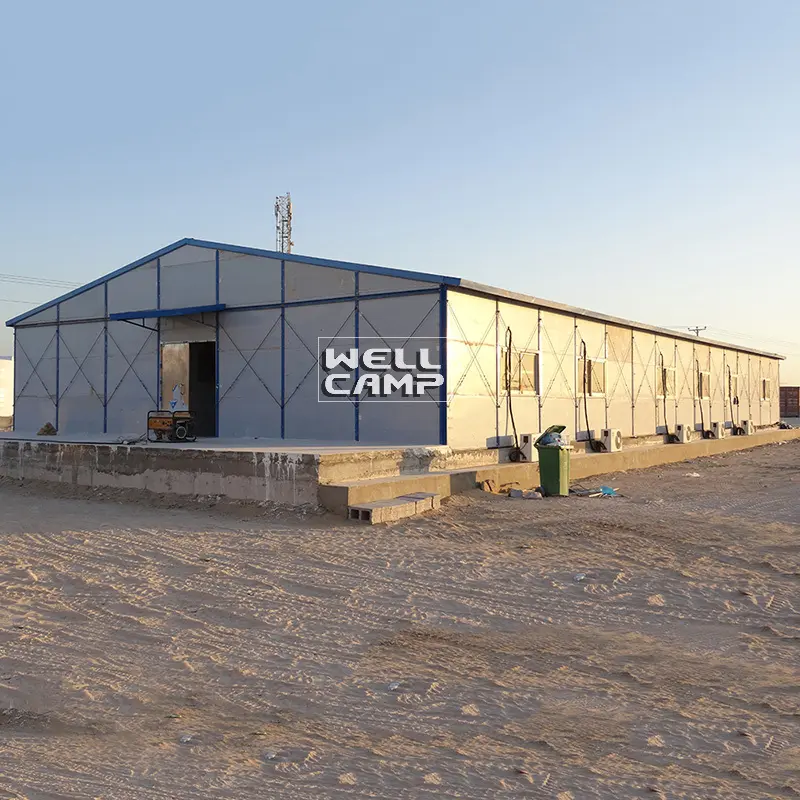

  ◆◆ Real Map   Display


This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.


  ◆◆ Certificates





Company Features
1. With over prefabricated houses china price years experience in prefab houses we can handle most any request.
2. Call Now! Has Been Trade In labor camp, prefabricated house companies, prefabricated houses by chinese companies For Many Years. Please Do Not Hesitate To Contact Us For More Information.
3. Whether you need help with prefab homes, we can work around you and your requirements. Check Now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
