Two Floor Temporary Modular Prefab House For Accommodation, Wellcamp T-12

这里可以自定义设置
Two Floor Temporary Modular Prefab House For Accommodation, Wellcamp T-12
B站不支持收货地址
B站不支持库存规格
Brand Name
WELLCAMP
House Style
T Prefabricated House
MOQ
100 Square Meters
Delivery Time
20-25 days
Port
Nansha/Huangpu Port
Price Term
FOB C&F CIF
Payment Term
TT/LC
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
  ◆◆ Product Detail


SortNameSpecification



Size


Length15.2m
Width5.7m
Height6m
Total area                         188.48 m²



Steel structure


ColumnSquare tube
BeamSquare tube
Purlin"C" section steel


Panel


Wall panel50mm EPS sandwich panel
Roof panel50mm EPS sandwich Panel


Accessories


Window1200*930 aluminum sliding window
 DoorEPS sandwich door


undefined



undefined


undefined

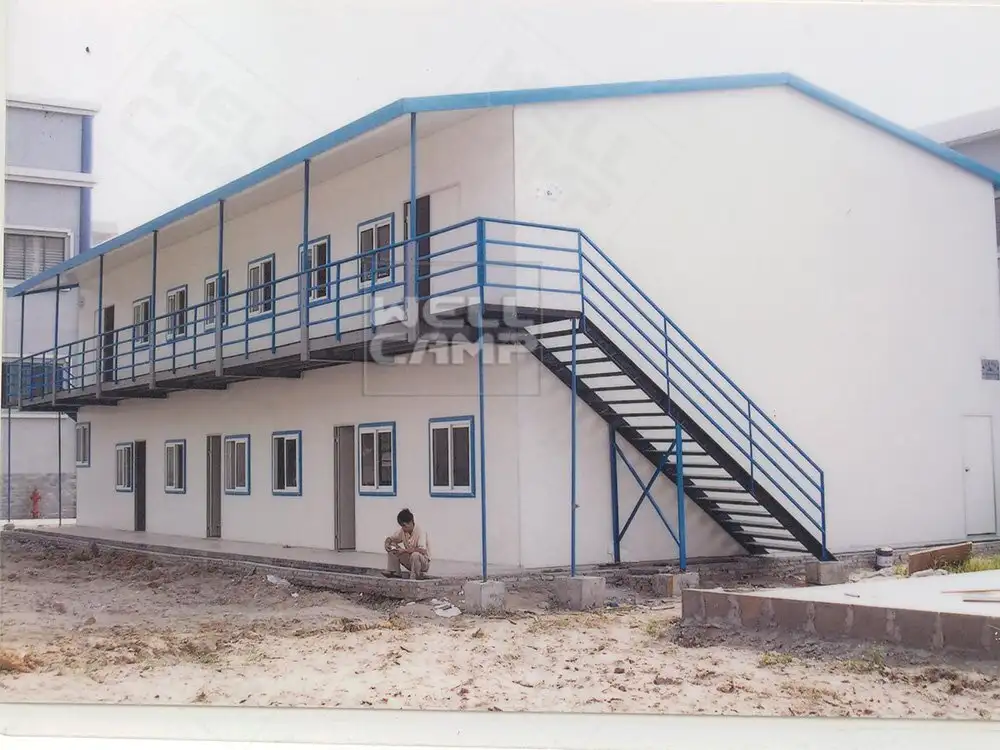

 India Project. This Wellcamp prefabricated house is used for the office. The ground floor has three rooms and the first floor have two rooms.

 The walkway and the stair is one-meter width. China cheap prefab house is for sale.


  ◆◆ Product  Features


1.The unit figure for T house dimension is T. 1T=0.95m.

2.T house can be done as 1 floor, 2 floors or 3 floors building.

3.The T house has a better looking and modern design. All the steel structures are hidden inside.

4.TT house features with good waterproof, fireproof, heat insulation and sound insulation performance.

5.T house use reusable materials and is more environment-friendly compared

      to traditional buildings. It can be assembled and disassembled six times.

6.T house is anti-worm and ant. All the steel structures are well painted

      and anti-rust which can be normally used for more than 20 years without any building garbage.

7.T house only requires level concrete floor for the foundation.

8.Easy installation. The house is connected by screws and bolts. It can

      be assembled and disassembled 6 times.

9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day.


  ◆◆ Main   Material



T-House 3D model


undefined


Material parameters

 Main steel:Square tube steel for column & beam;

Wall panel:50mm water proof EPS Sandwich panel;

Roof panel:50mm water proof EPS Sandwich panel;

Window:Aluminum sliding window;

Door:50mm EPS sandwich door;

Ridge capping:   0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance:

Grade 11

Earthquake resistance:

Grade 7

Snow load capacity of roofing:

0.6 kn/㎡

Live load capacity of roofing:

0.6 kn/㎡

External and internal wall heat transmission coefficient:

0.35 kcal/㎡hc

Wall permitted loading:

0.6 kn/㎡

Second floor load capacity:

180kg/㎡

Live load of corridor:

2.5kn/㎡

Density of Rock wool:

60 kg/㎡

Density of PU:

40 kg/㎡

Density of EPS:

12 kg/㎡

Density of IEPS:

20kg/㎡

Delivery time:

Normally 20-25 days

Container loading:

300㎡


  ◆◆ Product    Installation


Installation Photos


undefined
undefined
undefined
undefined
Installation Video




  ◆◆ Real Map   Display


undefined

This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
