Sort | Name | Specification |
Size | Length | 20.9m |
Width | 16.15m | |
Height | 5.7m | |
Total area | 339.63 m² | |
Steel structure | Column | Square tube steel |
Beam | Square tube steel | |
Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1200*930 aluminum sliding window |
Door | EPS sandiwich door |

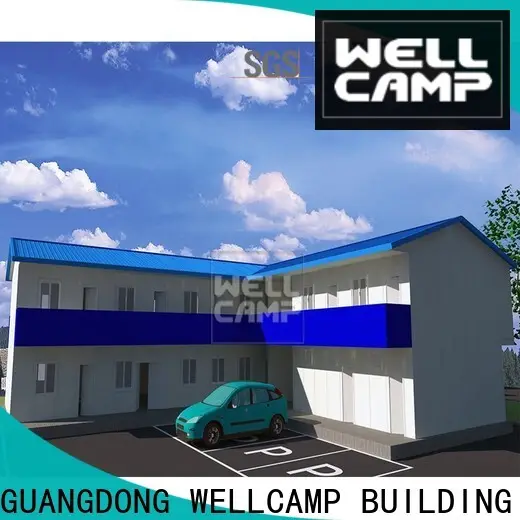

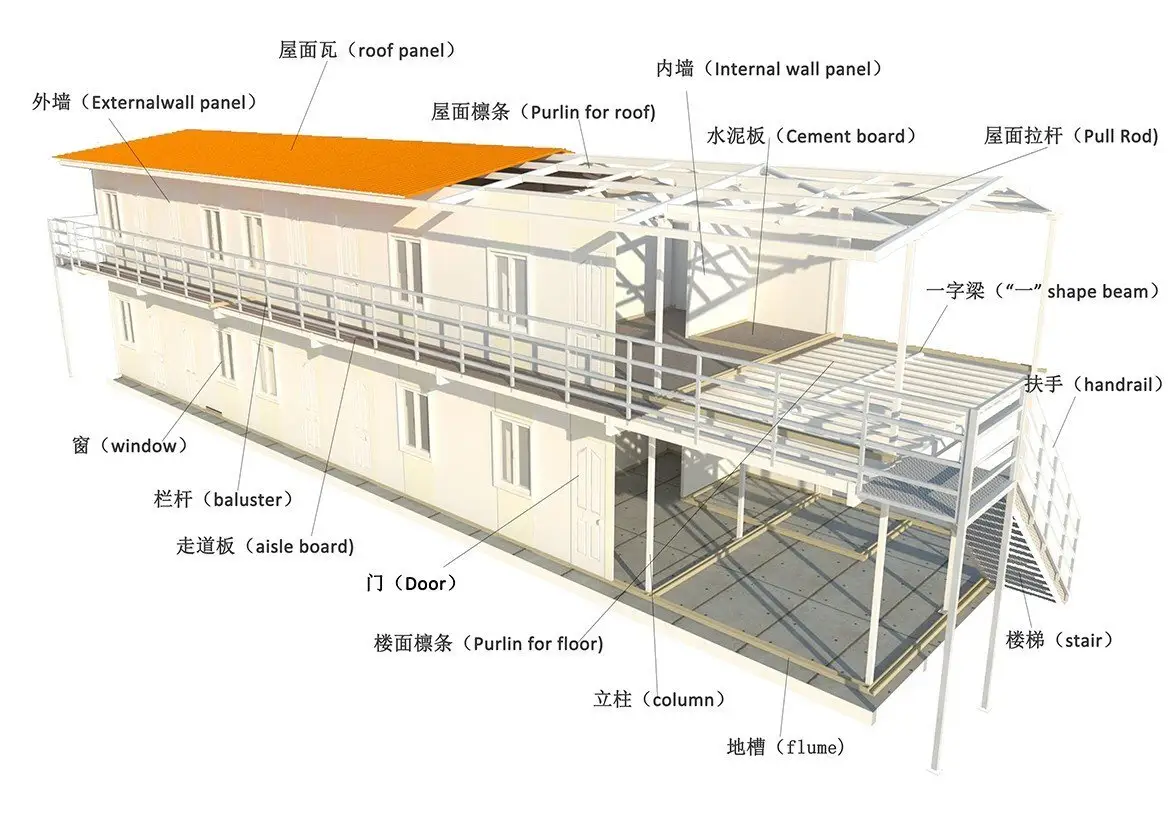

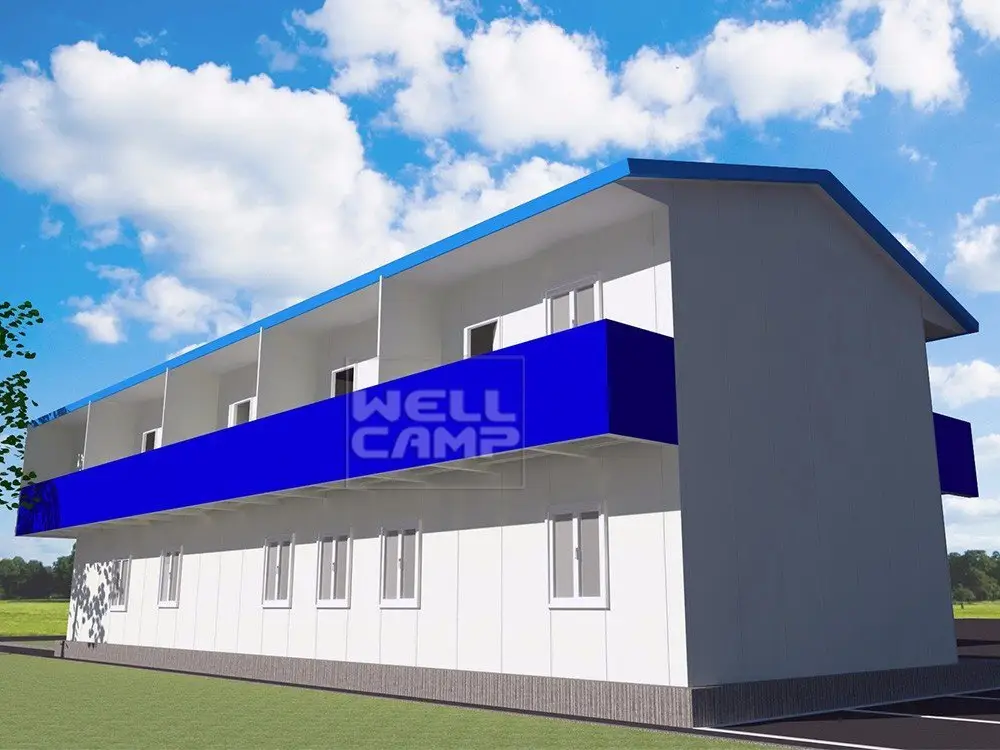

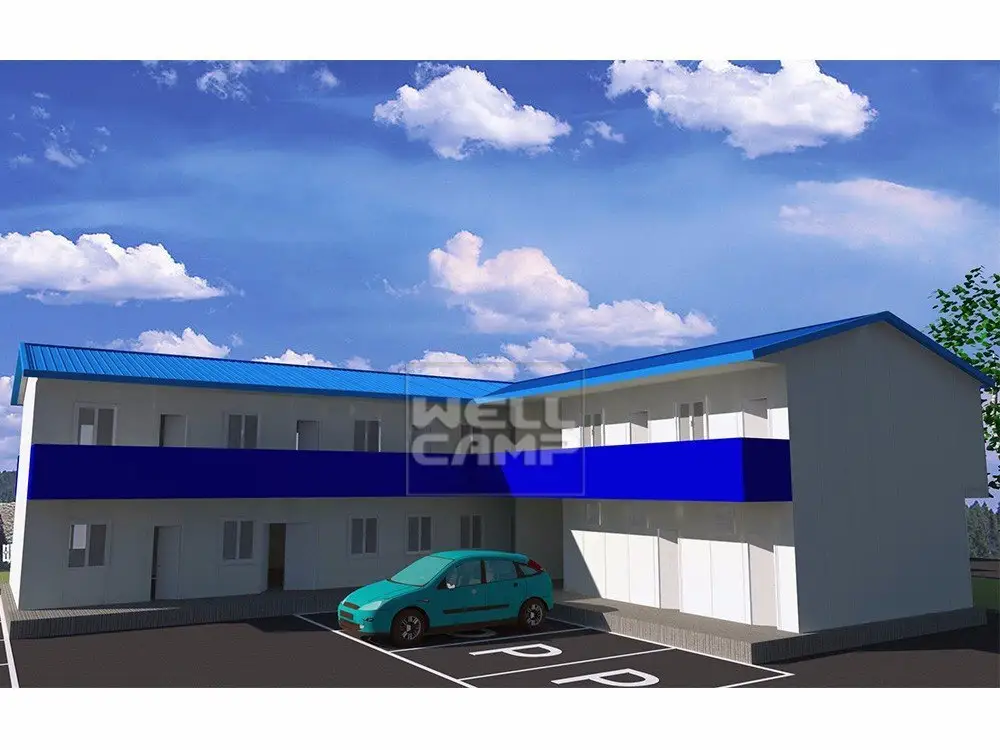

This is the 3D drawings for the steel prefabricated building in the construction site.

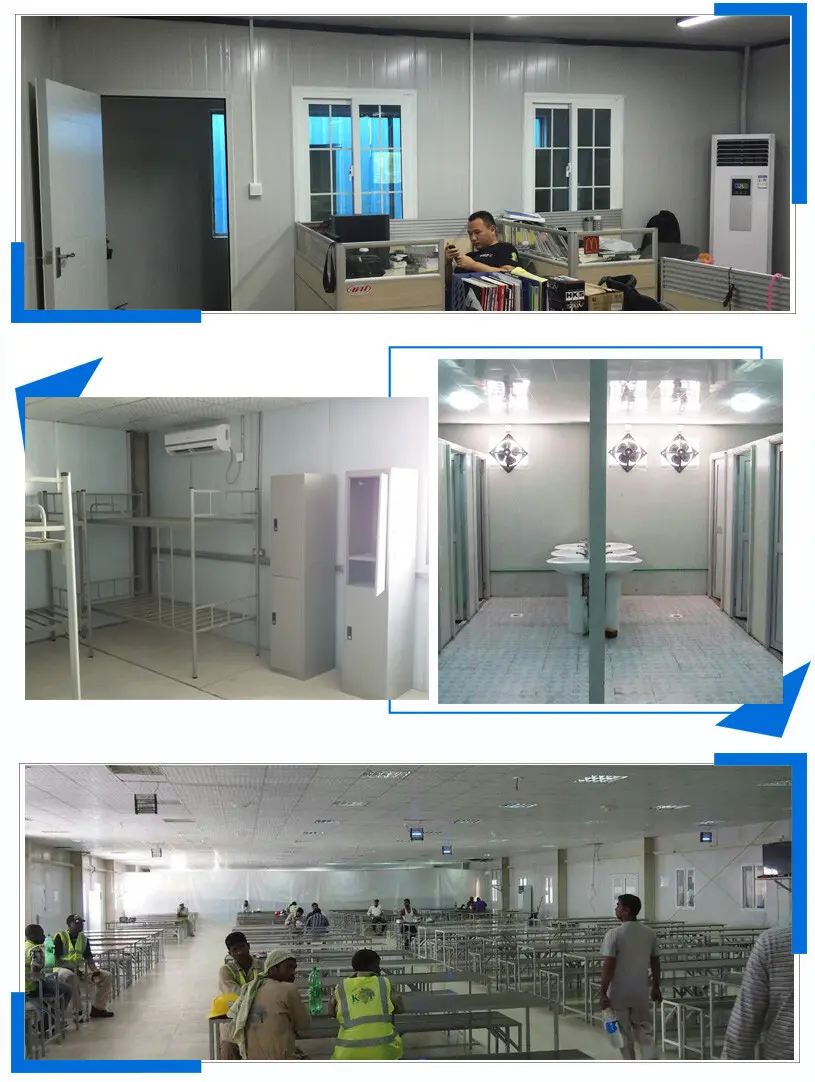

There are a meeting room, office, public toilet and bedrooms in this mobile building.
It is an easy installation and can be assembled and disassembled six times. This kind of steel houses is popularly used in the labor camp and construction site.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |

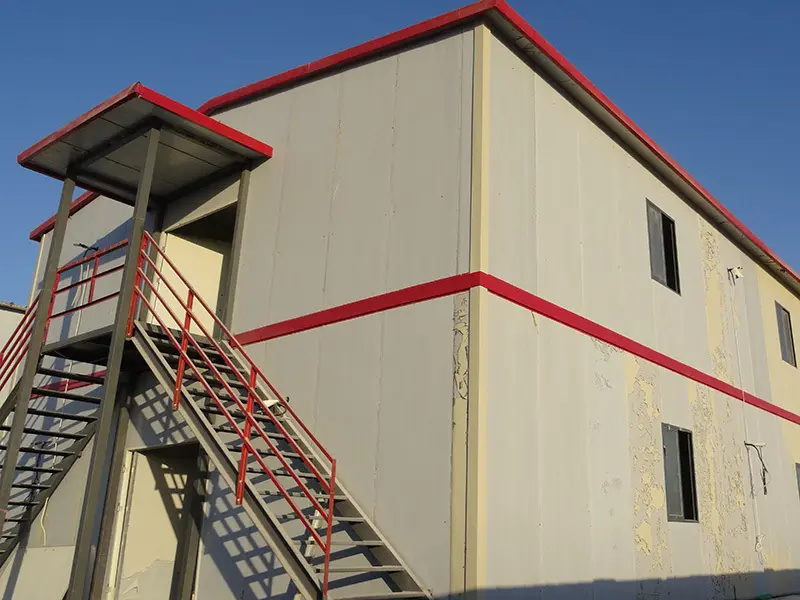

◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |

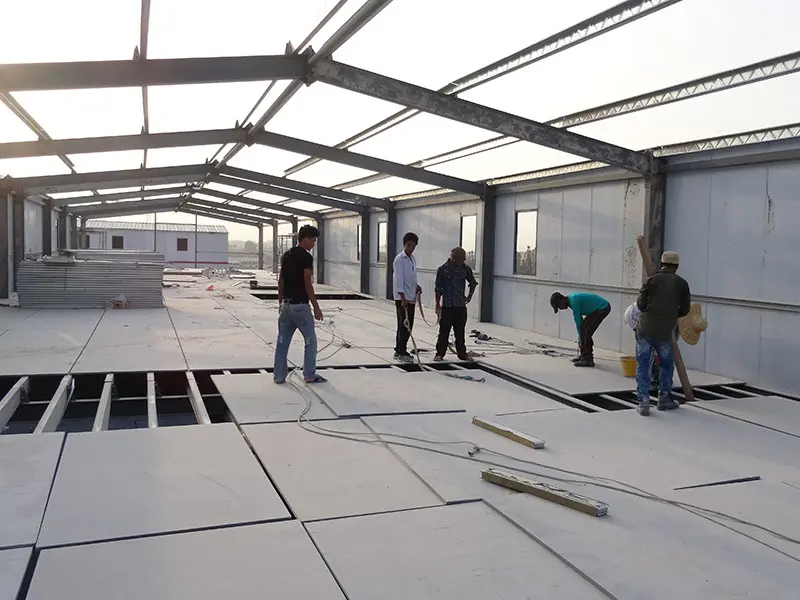

◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
Material parameters
Main steel:Square tube for column & beam;
Wall panel:50/mm EPS Sandwich panel;
Roof panel:50mm EPS Sandwich panel;
Window:Aluminum sliding window;
Door:EPS sandwich doors;
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
