| Sort | Name | Specification |
Size  | Length | 9m |
| Width | 5m | |
| Height | 2.8m | |
| Total area | 45m2 | |
Steel structure  | Column | Square tube |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel  | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories  | Window | 500*600 Glass window |
| Door | Sandwich panel sliding door | |

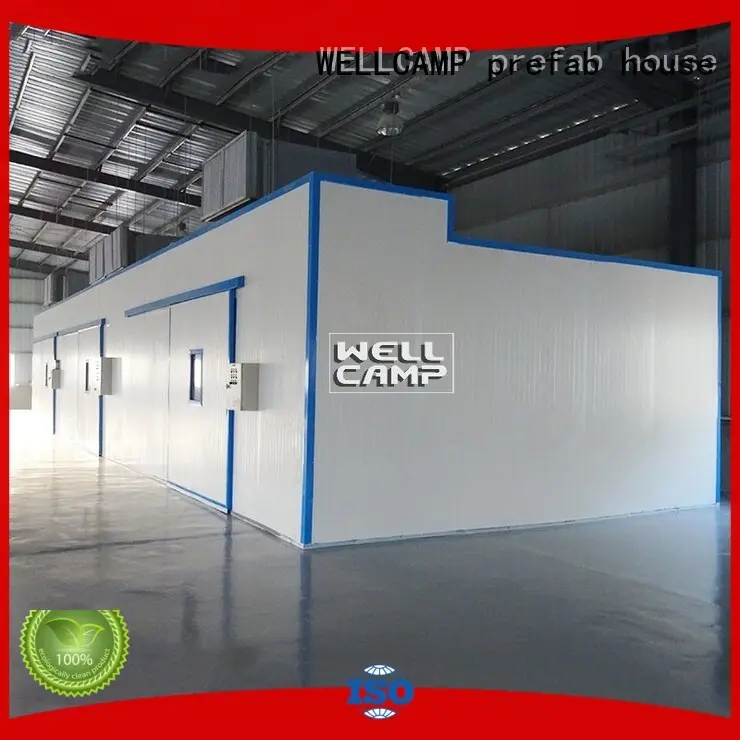

Oatar project. This modern prefab house is the Engine room inside the workshop.
The engine room house has 3 rooms for the machines in total. Each room has a small glass window for supervisory control.
◪1.The unit figure for T house dimension is T. 1T=0.95m.  |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building.  |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside.  |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance.  |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times.  |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage.  |
◪ 7.T house only requires level concrete floor for the foundation.  |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times.  |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day.  |
Material parameters
Main steel:C section steel for column & beam;
Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Window:Aluminum sliding window;
Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;
Ridge capping:   0.326/0.376/0.426mm single steel sheet.
Wind resistance:  | Grade 11  |
Earthquake resistance:  | Grade 7  |
Snow load capacity of roofing:  | 0.6 kn/㎡  |
Live load capacity of roofing:  | 0.6 kn/㎡  |
External and internal wall heat transmission coefficient:  | 0.35 kcal/㎡hc  |
Wall permitted loading:  | 0.6 kn/㎡  |
Second floor load capacity:  | 180kg/㎡  |
Live load of corridor:  | 2.5kn/㎡  |
Density of Rock wool:  | 60 kg/㎡  |
Density of PU:  | 40 kg/㎡  |
Density of EPS:  | 12 kg/㎡  |
Density of IEPS:  | 20kg/㎡  |
Delivery time:  | Normally 20-25 days  |
Container loading:  | 300㎡  |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
