simple prefab shipping container homes classroom for labour camp
1. prefab shipping container homes looks luxuriant in design to create enjoyable experience. Its stable quality is achieved by the efforts of the design team, engineer team, innovation team, and QC team
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD welcome customized service for prefab shipping container homes . Its color, size, and shape can be customized to meet customer's requirements
3. The product is designed to be very durable. It is comprised of basic electrical components that are well encapsulated to withstand any forms of impacts and bumps. The service life of the product is more than 20 years
| Sort | Name | Specification |
Size | Length | 15.2m |
| Width | 5.7m | |
| Height | 6m | |
| Total area | 188.48 m² | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
| Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | EPS sandwich door | |

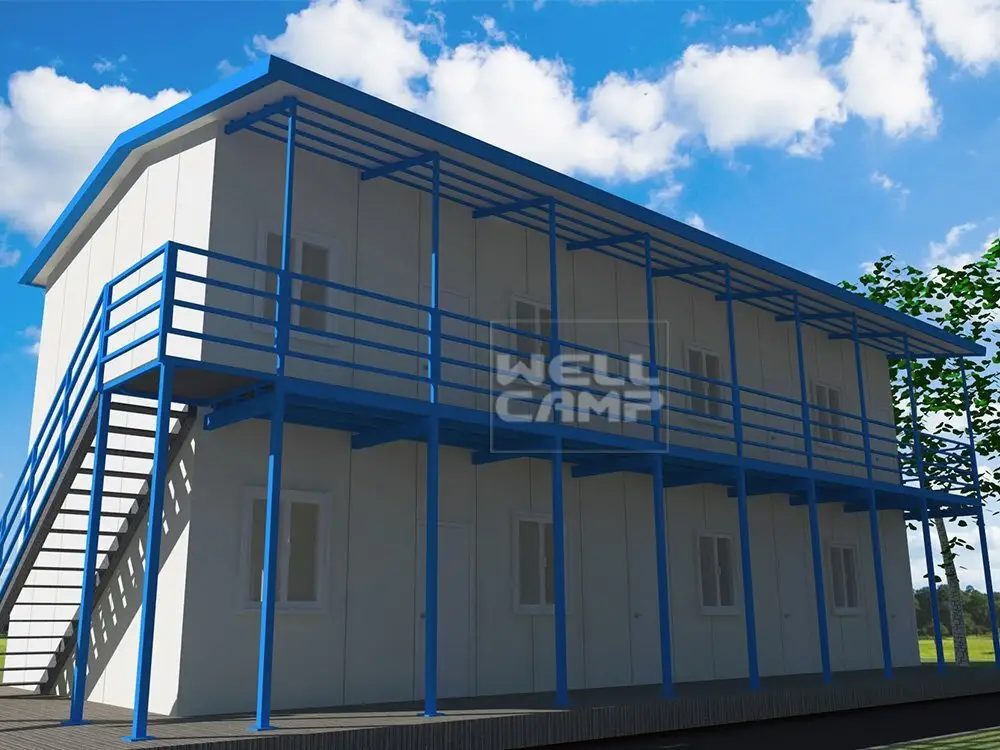

Two-floor Prefabricated Steel Building. This steel building is built for workers' accommodation with totally 8 rooms.
All the steel structures are hidden inside with modern and good looking designs. China prefabricated home.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7. T house only requires level concrete floor for the foundation. |
◪ 8. Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：Square tube for column&beam；
Wall panel：50mm EPS Sandwich panel；
Roof panel：50mm EPS Sandwich panel；
Window：Aluminum sliding window；
Door：EPS sandwich door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. Being a competitive and powerful manufacturer and supplier of china prefabricated house manufacturers , Guangdong WELLCAMP BUILDING MATERIALS CO., LTD enjoys a good reputation in the market.
2. Our prefab shipping container homes is easily operated and need no additional tools.
3. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has decided to become a leading company focused on providing the best service. Ask online!
