modular prefabricated house suppliers office homes Brand
1. prefab houses for sale offer maximum flexibility in product handling allowing for products to be modular prefabricated house suppliers in various china standard prefabricated house worker camp manufacturers all on the same machine. We are the top 1 in folding container & refugee houses in China.
2. Whatever style or function you want, we design all our prefab house kits bespoke to your exact requirements. Being excellent in fire proof and noise proof performance, Wellcamp folding container provide a safe and sound living place for users.
3. Our production area covers more than 20,000 m², Continuously Strives To Provide High Quality prefab guest house, china prefabricated house manufacturers At Reasonable Prices.
| Sort | Name | Specification |
Size | Length | 8.5m |
| Width | 4.3m | |
| Height | 2.8m | |
| Total area | 36.554m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel+PVC decoration sheet outside |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Stee door | |

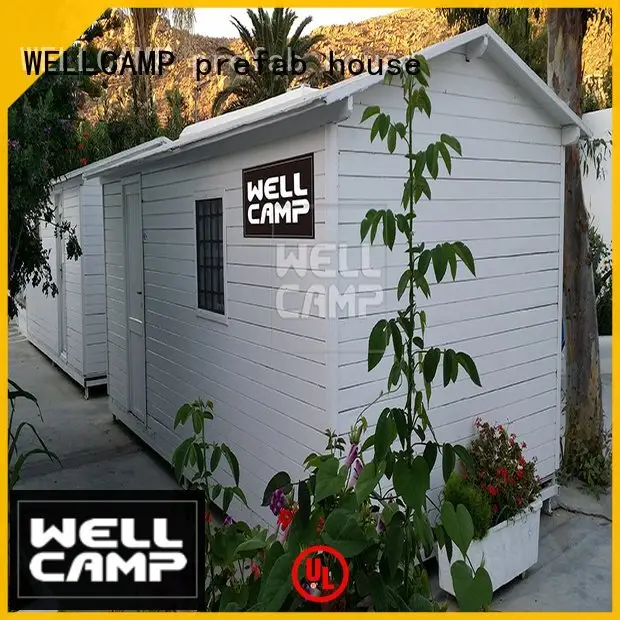

China local light steel villa project. This villa apartment inside have the one toilet,one bed and one table.
This kind of steel villas are very suitable for the villa resort. Easy install & good looking with competitive price.
◪1.Unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.Better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house is famous with good water proof, fire proof, heat insulation and sound insulation performance. |
◪ 5.T house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is Anti worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation, the house is connected by screw and bolt. It can be assembled and disassembled by 6 times. |
◪ 9.6 labors one team, each day can install more than 300 m2. |
T-House 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/m2 |
External and internal wall heat transmission coefficient: | 0.35 kcal/m2hc |
Wall permitted loading: | 0.6 kn/m2 |
Second floor load capacity: | 180kg/m2 |
Live load of corridor: | 2.5kn/m2 |
Density of Rock wool: | 60 kg/m2 |
Density of PU: | 40 kg/m2 |
Density of EPS: | 12 kg/m2 |
Density of IEPS: | 20kg/m/2 |
Delivery time: | Normally 20-25 days |
Container loading: | 300m2 |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. The products offered by us are precisely manufactured using premium grade modular prefabricated house suppliers and leading-edge techniques in complete tandem with the current market standards.
2. Our goal is to provide you with the best possible service at a reasonable price. Call Now!
