Mobile Homes K Type Prefabricated House For Labor Camp, Wellcamp K-9

Mobile Homes K Type Prefabricated House For Labor Camp, Wellcamp K-9

Brand Name
WELLCAMP
House Style
k Prefabricated House
Model
K-9
MOQ
100 Square Meters
Delivery Time
10-25 days
Port
Nansha/Huangpu Port
Price Term
FOB C&F CIF
Payment Term
TT/LC
  ◆◆ Product Detail


SortNameSpecification



Size


Length10K(18.36m)
Width2K(3.8m)
Height6P
Total area                       176.08 m²



Steel structure


Column"C" section steel
Beam"C"  section steel
Purlin"C" section steel


Panel


Wall panel50mm EPS sandwich Panel
Roof panel50mm EPS sandwich Panel


Accessories


Window1740*925 aluminum sliding window
 DoorSteel door outside

undefined

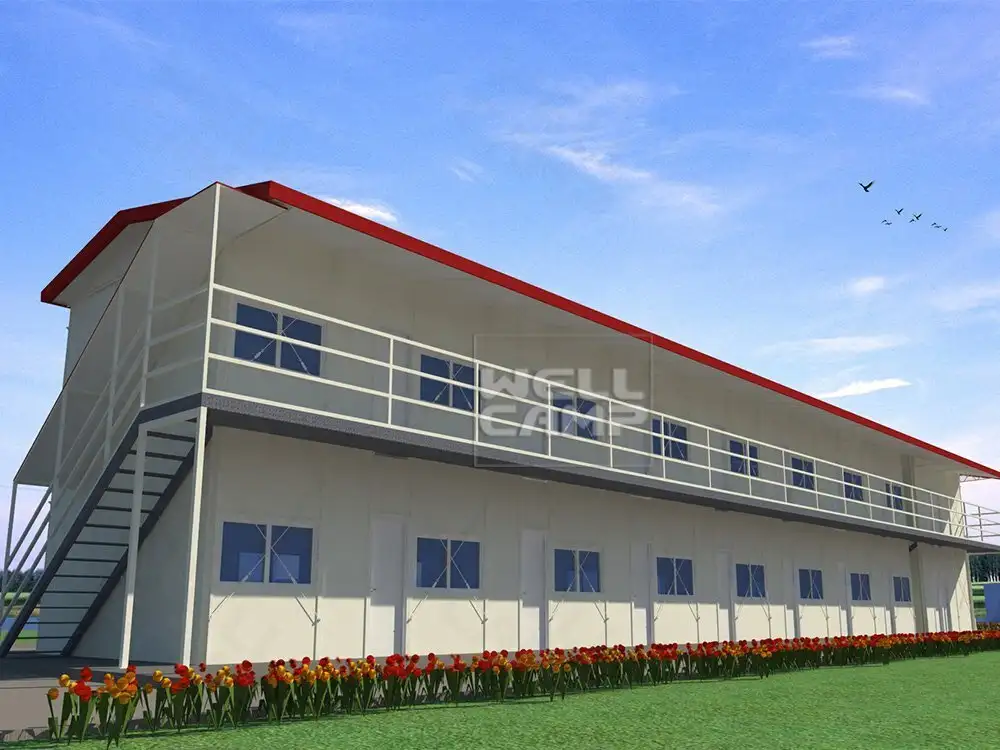

  This two-floor prefabricated house is built for the worker dormitory.

 One side of this prefab building are the bedrooms, another side are the public bathrooms.


  ◆◆ Product  Features


1. The unit figure for K house dimension is K. 1k=1.82m

2.K house can be done as 1 floor, 2 floors or 3 floors building.

      Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ).

3. K house is commonly used with qualified waterproof, fireproof (EPS/Rock        wool/IEPS/PU sandwich panel), heat insulation and sound insulation performance.

4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times.

5.K house is Anti worm and ant. All steel structures are well painted and

      anti-rust which can be normally used for over 15 years with very limited amount of building wastes.

6.K house only requires level concrete floor for the foundation.

7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day.


  ◆◆ Main   Material



K-House 3D model


undefined


Material parameters

 Main steel:C section steel for column & beam;

Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Window:Aluminum sliding window;

Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;

Ridge capping: 0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance

Grade 11(wind speed≤120 km/h)

Earthquake resistance

Grade 7

Snow load capacity of roofing

0.6 kn/m²

Live load capacity of roofing

0.6 kn/m²

External and internal wall heat transmission coefficient

0.35 kcal/m²hc

Wall permitted loading

0.6 kn/m²

Second floor load capacity

180kg/m²

Live load of corridor

2.5kn/m²

Density of EPS

12 kg/m²

Delivery time

Normally 20-25 days

Container loading

300-320 m² /HQ


  ◆◆ Product    Installation


Installation Photos


Installation Video




  ◆◆ Real Map   Display


This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
