Fast Install EPS Sandwich Panel Prefabricated Villa, Wellcamp S-1
Fast Install EPS Sandwich Panel Prefabricated Villa, Wellcamp S-1
Brand Name
WELLCAMP
House Style
steel villa
Model
Wellcamp S-1
MOQ
100 Square Meters
Delivery Time
10-25 days
Port
Nansha/Huangpu Port
Price Term
FOB C&F CIF
Payment Term
TT/LC
  ◆◆ Product Detail


SortNameSpecification



Size


Length9.76m
Width6.71m
Height2.8m
Total area                             65.49 m²



Steel structure


ColumnSquare tube
BeamSquare tube
Purlin“C” section steel


Panel


Wall panel50mm EPS sandwich panel
Roof panel50mm EPS sandwich panel


Accessories


Window1200*930 aluminum sliding window
 Door880*2040 steel door


undefined


undefined


undefined


  ◆◆ Product  Features


1.Modular Villa is easy to build, low cost, significantly time-saving and

       labor saving comparing to the traditional civil buildings.

2.Internal design can be customized according to your own stylish apartment with bedrooms,

        living room, kitchen and toilet inside.

3.EExternal decoration sheet / internal wall paper is used for better appearances

       of the house.

4.Ceramic tile, ceiling, sit-down toilet, wash basin and shower are conventional arrangements.

5.Easy to build. The house is connected by bolts and screws. 6 labors constitute one team, which

       can install an area of 100 square meters each day.


  ◆◆ Main   Material

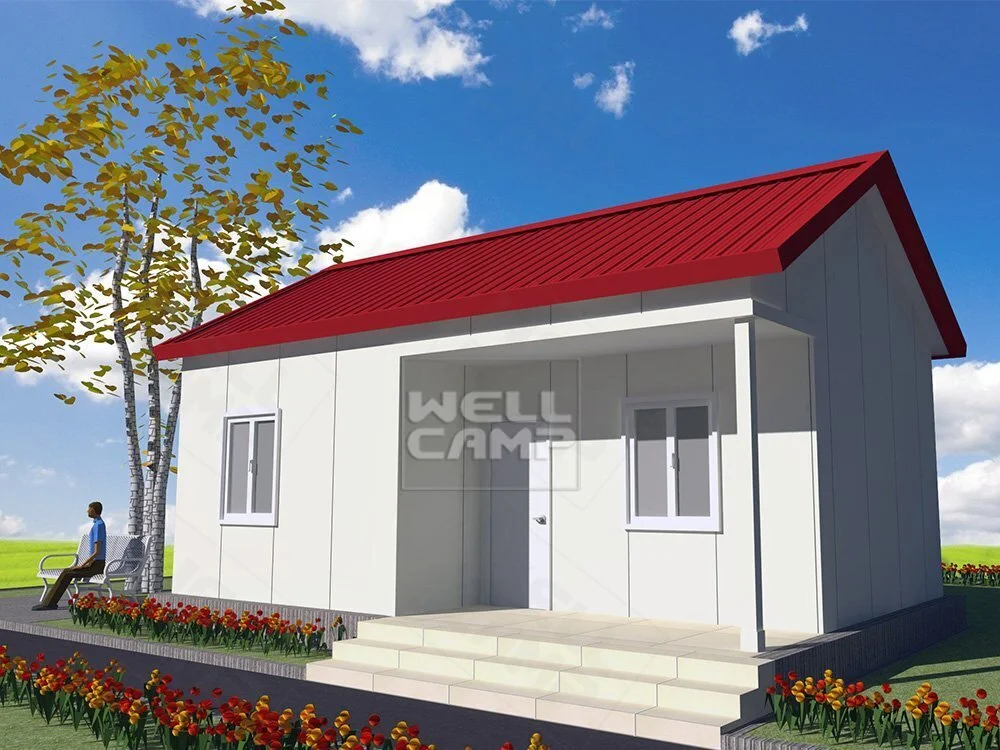

Steel Villa 3D model


undefined


Material parameters

 Main steel:C section steel for column & beam;

Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Window:Aluminum sliding window;

Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;

Ridge capping:   0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance:

Grade 11

Earthquake resistance:

Grade 7

Snow load capacity of roofing:

0.6 kn/㎡

Live load capacity of roofing:

0.6 kn/㎡

External and internal wall heat transmission coefficient:

0.35 kcal/㎡hc

Wall permitted loading:

0.6 kn/㎡

Materials for the wall and roof:

EPS/IEPS/Rock wool/PU

Thickness of the wall and roof:

50mm/75mm/100mm

Accessories:

Ceramic tile,ceiling,toilet,wash basin

Delivery time:

Normally 20-25 days


  ◆◆ Product    Installation


Installation Photos


undefined
undefined
undefined
undefined
Installation Video




  ◆◆ Real Map   Display


undefined

This steel villa can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
