Sort | Name | Specification |
Size | Length | 20K |
Width | 3.5K | |
Height | 6P | |
Total area | 607.85 m² | |
Steel structure | Column | C section steel |
Beam | C section steel | |
Purlin | C section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1740*925 aluminum sliding window |
Door | EPS sandwich door, steel door |
◪1.Unit figure for K house dimension is K. 1k=1.82m. |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3.K house is commonly used with qualified water proof, fire proof (EPS/Rock wool/IEPS/PU sandwich panel), heat insulation and sound insulation performance. |
◪ 4.K house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |

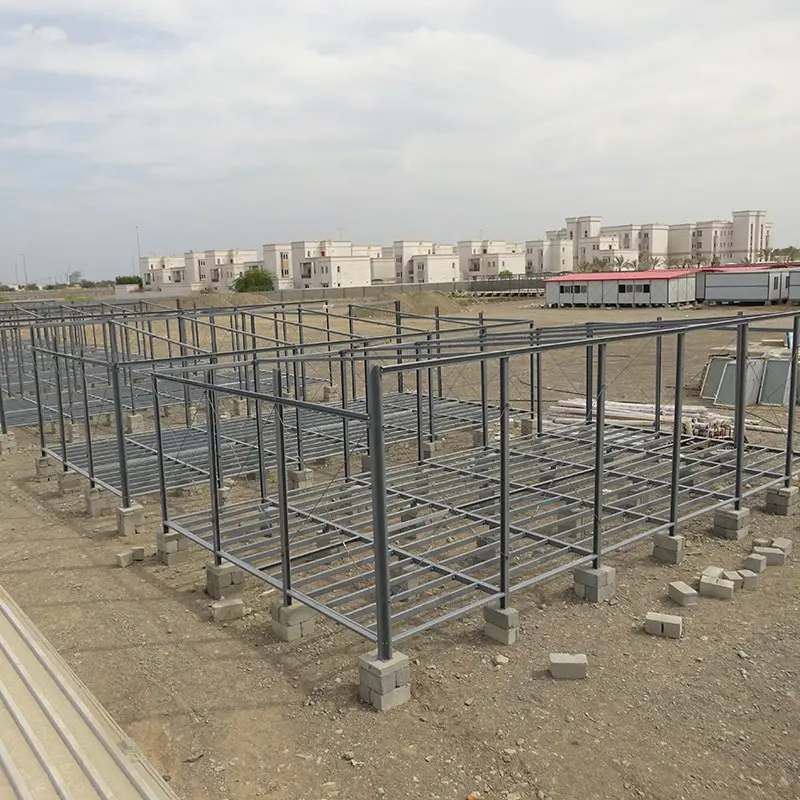

◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7.labors one team, each day can install more than 300 m2. |

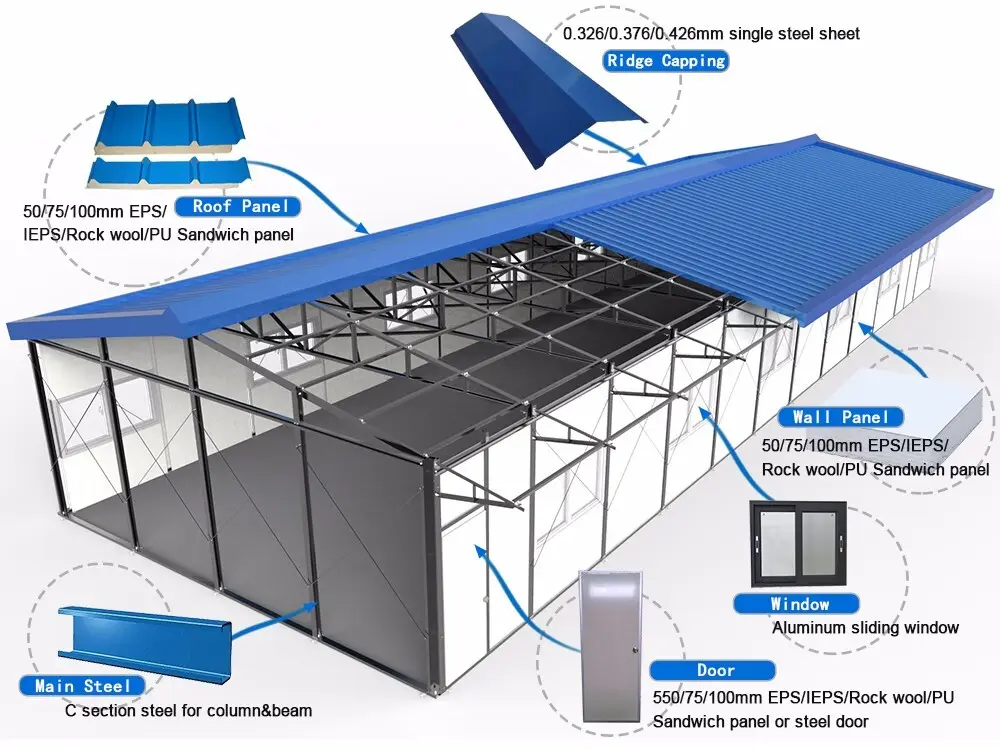

Material parameters
Main steel:C section steel for column&beam;
Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Window:Aluminum sliding window;
Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;
ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

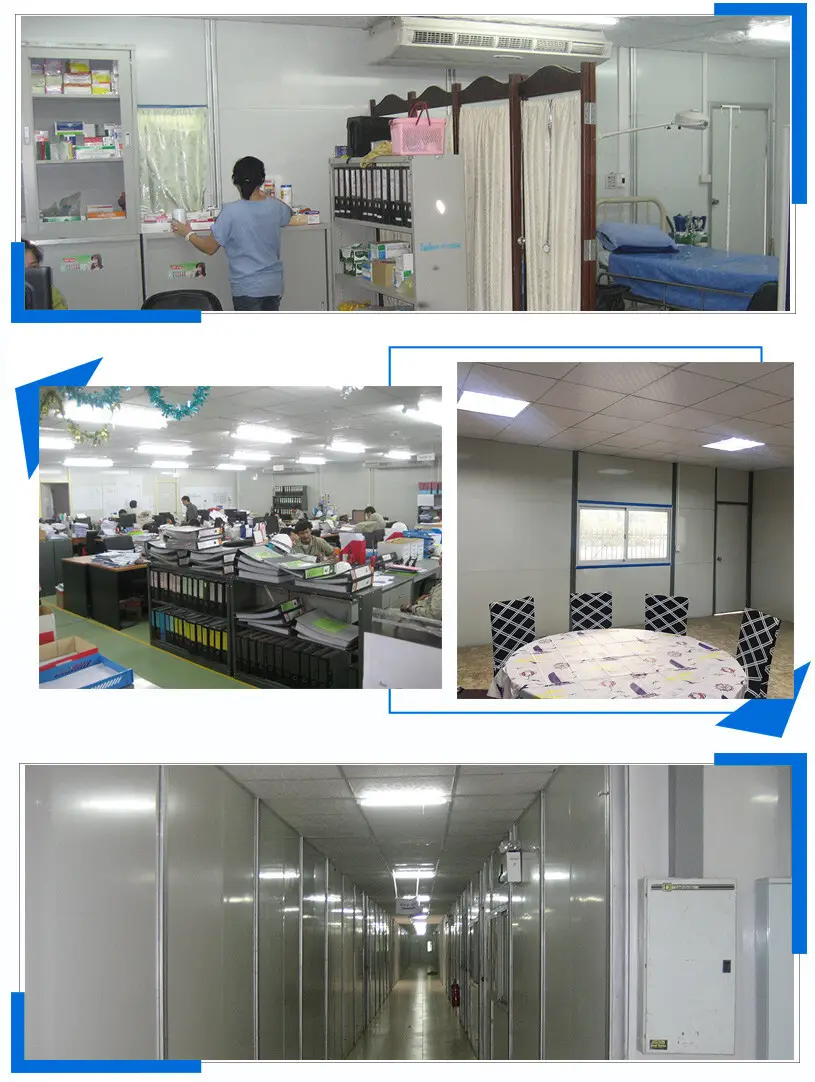

This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
