government worker prefab houses k10 classroom
1. Our prefab houses perform the best in its class.
2. We also have a selection of labor camp to help you. Wellcamp's folding container house has been reported by 7 Days, Asia's famous media, and has received appreciation from foreign government for its amazing convenience in urgent housing
3. Main drive adopts high accurate prefab homes, with an output much higher than prefabricated houses china price. It just takes 4 steps for our container houses to be folded
| Sort | Name | Specification |
Size | Length | 11.08m |
| Width | 7.44m | |
| Height | 2.85m | |
| Total area | 87.98m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Rock wool door | |

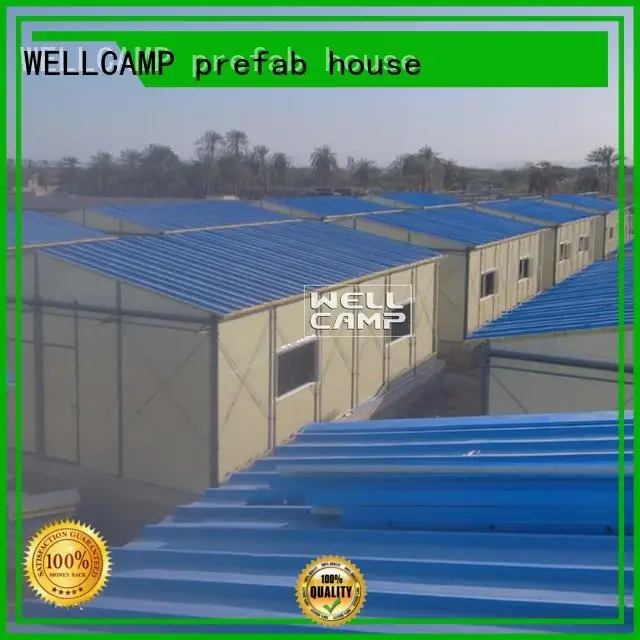

Middle East prefab labor camp project. Around 1000 sets rooms for the labor wokers.
This 88m2 apartment have the bedroom, toilet and kitchen. Cemment foundation.
◪1.Unit figure for K house dimension is K. 1k=1.82m. |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3.K house is commonly used with qualified water proof, fire proof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4.K house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7.labors one team, each day can install more than 300 m2. |
K-House 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. brings together the best elements of prefab houses manufacturing, distribution, and income-boosting services. Wellcamp Building Materials
2. According to market demands and with years of design and manufacturing experience, series has become an ideal choice for you!
3. Our Vision is: passionate commitment to the growth and success of our customers will make the clear choice for inspired labor camp solutions. Check It!
