customized prefabricated concrete houses home for accommodation worker
1. The raw materials of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house concrete houses australia are carefully chosen. The production process of these materials are strict and their quality reaches the international standards, which helps it withstand the test of the time.
2. prefabricated concrete houses, made from superior materials, has unique effects such as earthquake resistance, fire prevention, heat preservation, and heat insulation. It based on high utilization rate and re-usability makes a great contribution to environmental protection and energy saving.
3. prefabricated concrete houses is made from eco-friendly, non-toxic and odorless materials. With high utilization rate of waste, it meets the requirements of sustainable development. In addition, it has firm structure, high stability, and good bearing capacity and has excellent seismic performance and windproof property.
4. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has high-quality management and technical team.
| Sort | Name | Specification |
Size | Length | 32.92m |
| Width | 12.9m | |
| Height | 5.7m | |
| Total area | 849.34m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Double opening steel Door outside and sandwich door inside | |
| Payment terms | T/T,L/C | |
| MOQ | 200 square meter | |

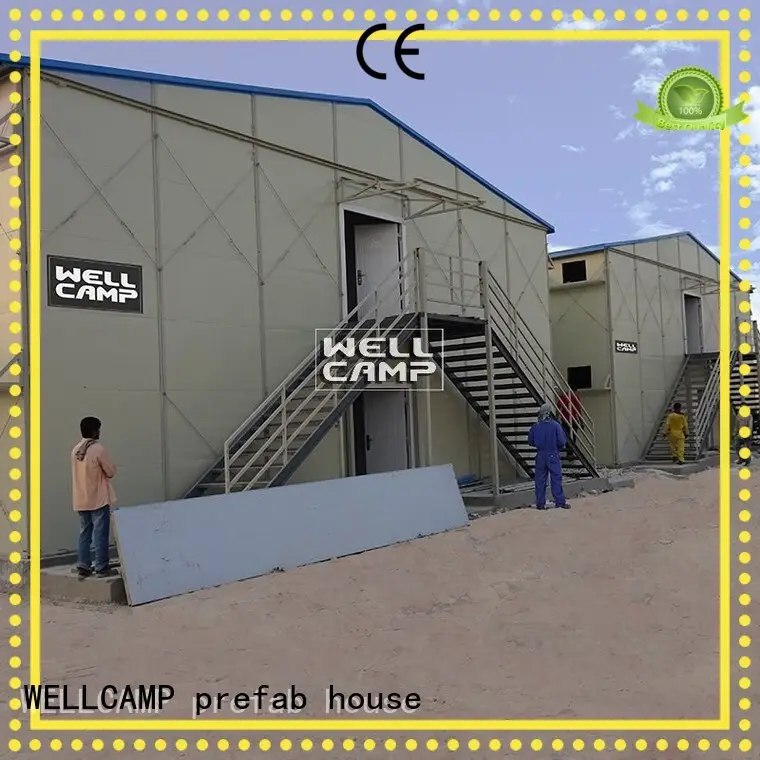

Qatar Project. This prefabricated house is built for the workers' dormitories. There are middle walkway and two siding rooms.
OOne building has 36 rooms. One room has the capacity of 6-8 labors, serving double bed.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2. K house can be done as 1 floor, 2 floors or 3 floors building.Figures for house with different stories: One floor=3P, two floors=6p, three floors = 9p (1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times. |
◪ 5. K house is anti-worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with a very limited amount of building wastes. |
◪ 6. K house only requires level concrete floor for the foundation. |
◪ 7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
K-House 3D model
Material parameters
Main steel：C section steel for column& beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has rich experience in producing prefabricated concrete houses.
2. We have established a strong customer base. These customers have collaborated with us for many years and they highly trust us.
3. Regardless of design or product, Guangdong WELLCAMP BUILDING MATERIALS CO., LTD always adheres to the core concept of 'innovation'. Call! WELLCAMP, WELLCAMP prefab house, WELLCAMP container house determines to lead the labor camp industry with its high quality service. Call! Facing the future, WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has established the general idea of prefab house kits . Call! Each of our investments is strategic and Guangdong WELLCAMP BUILDING MATERIALS CO., LTD hopes to bring the best interests to our customers with the integrity of the group. Call!
