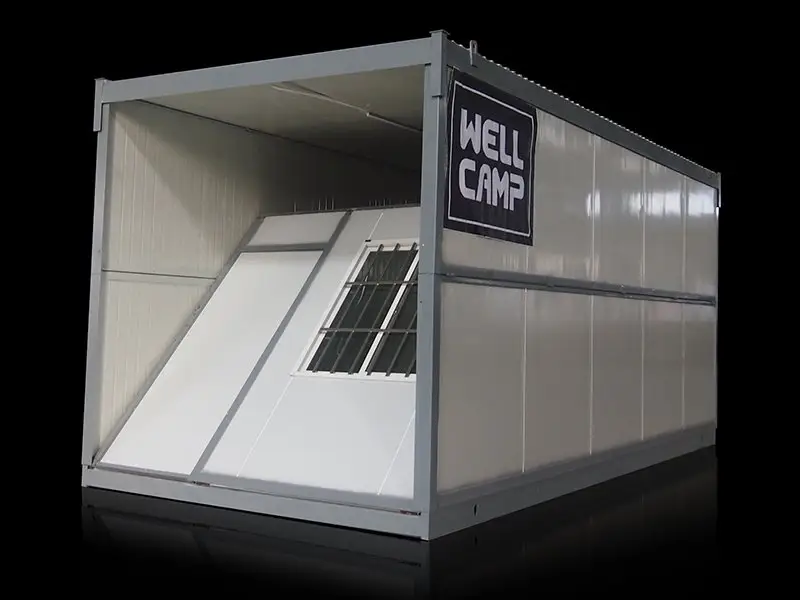

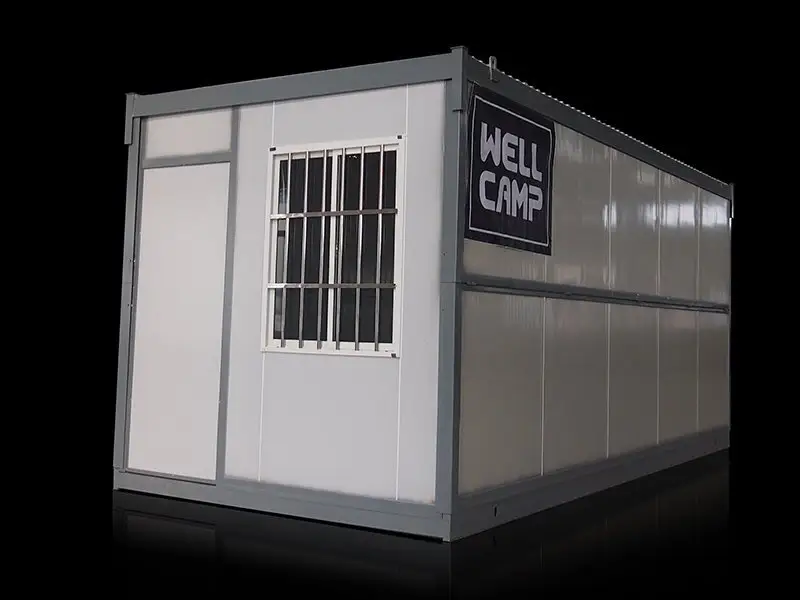

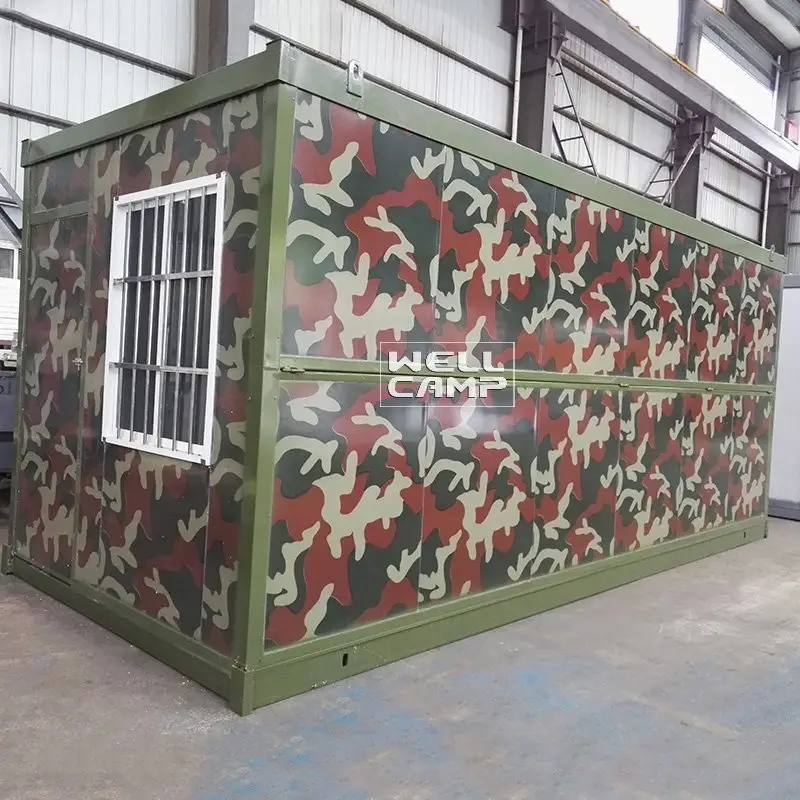

c5 worker folding container house house
1. folding container house is a foldable container house constructed entirely of foldable container material. Wellcamp's folding house can be fabricated into different styles and sizes to suit specific application.
2. This container house is highly required by the customers for its corrosion resistant nature. Made from reliable steel, the frame structure of Wellcamp house is resistant to extreme conditions such as storms and fire
3. Our products are designed accordingly to the need of the customer, still keeping the roots of the creative process embedded in the artisan tradition. Compared with the civil building, wellcamp folding house is much easier to construct, thus bringing more cost, labor and time saving benefits to users
4. Characteristics of pbs folding container house are foldable shipping container and foldable house. All the steel structure of Wellcamp house are painted with anti-rust treatment which keeps the house free from worms and ants while being in good state for over 15 years
| Sort | Name | Specification |
Size | Length | 5.8m |
| Width | 2.5m | |
| Height | 2.6m | |
| Total area | 14.5m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | Square tube | |
Panel | Wall panel | 40mm IEPS sandwich panel |
| Roof panel | 40mm IEPS sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | IEPS sandwich panel door | |

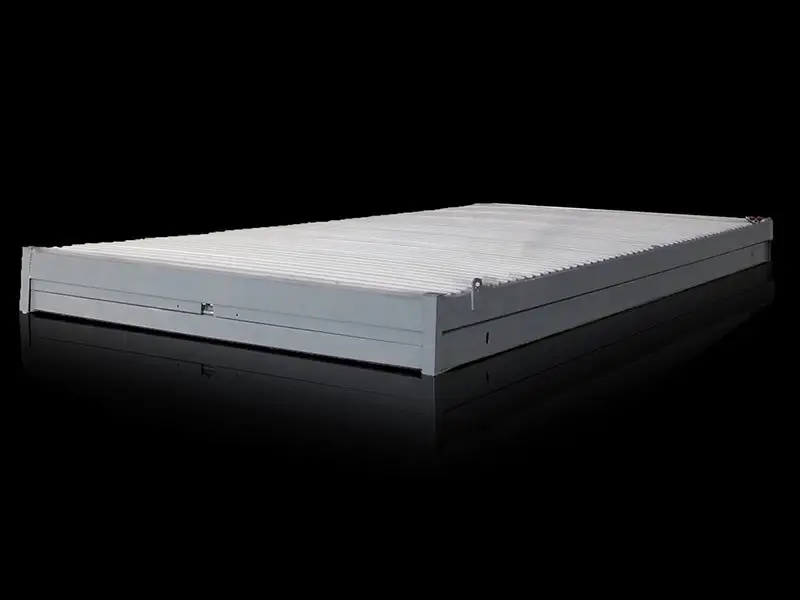

◪1.100% folding. |
◪2.100% fire proof and water proof. |
◪3.4 workers can install 1 set in only 4 minutes. |
◪ 4.One 40 feet shipping container can load 12 sets. |
◪ 5.It can save transportation, installation /storage cost. |
◪ 6.Newest design in China. |

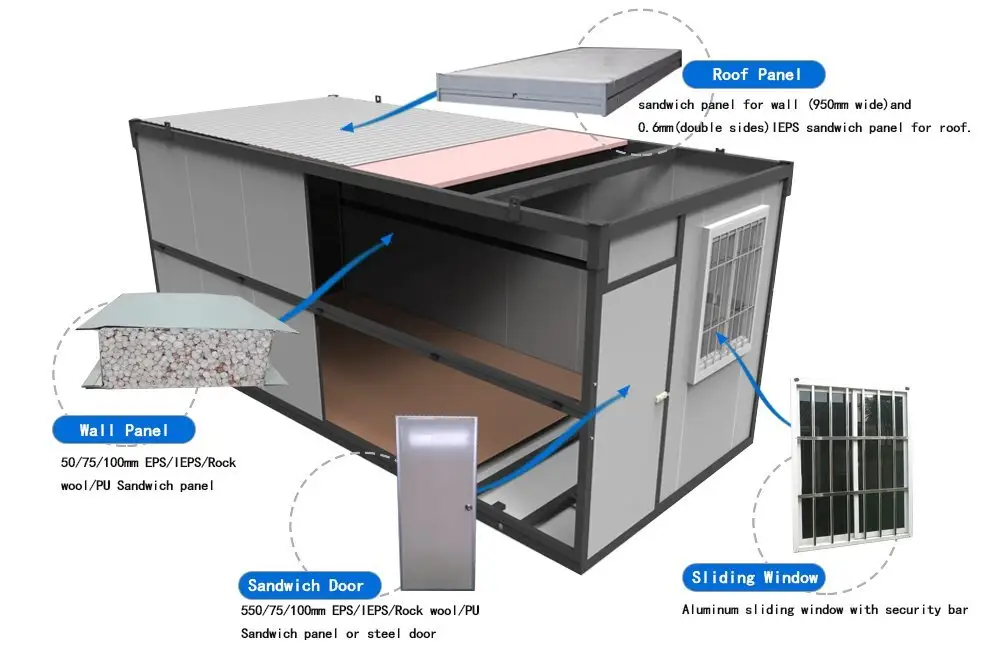

Folding container house 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

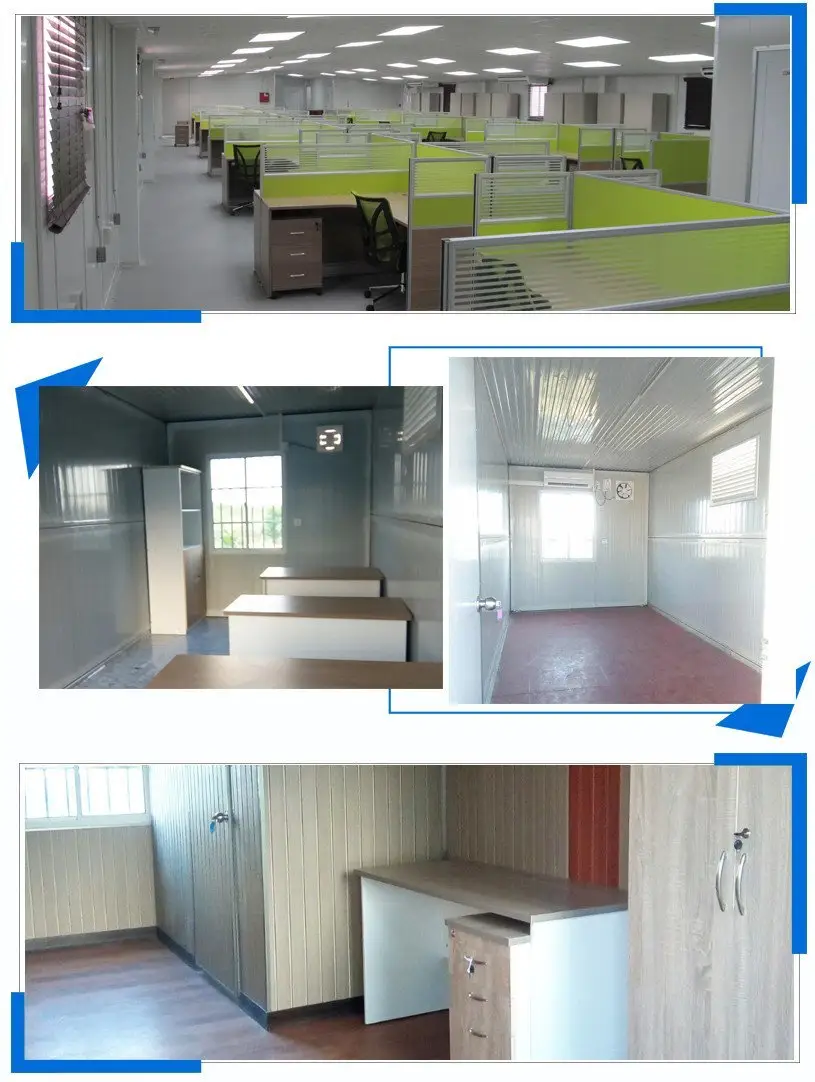

This folding container house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
