Sort | Name | Specification |
Size | Length | 5.8m |
Width | 2.5m | |
Height | 2.6m | |
Total area | 14.5m2 | |
Steel structure | Column | Square tube |
Beam | Square tube | |
Purlin | Square tube | |
Panel | Wall panel | 40mm IEPS sandwich panel |
Roof panel | 40mm IEPS sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
Door | IEPS sandwich panel door |
◪1.100% folding. |
◪2.100% fire proof and water proof. |
◪3.4 workers can install 1 set in only 4 minutes. |
◪ 4.One 40 feet shipping container can load 12 sets. |
◪ 5.It can save transportation, installation /storage cost. |
◪ 6.Newest design in China. |
Material parameters
Main steel:C section steel for column&beam;
Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;
Window:Aluminum sliding window;
Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;
ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

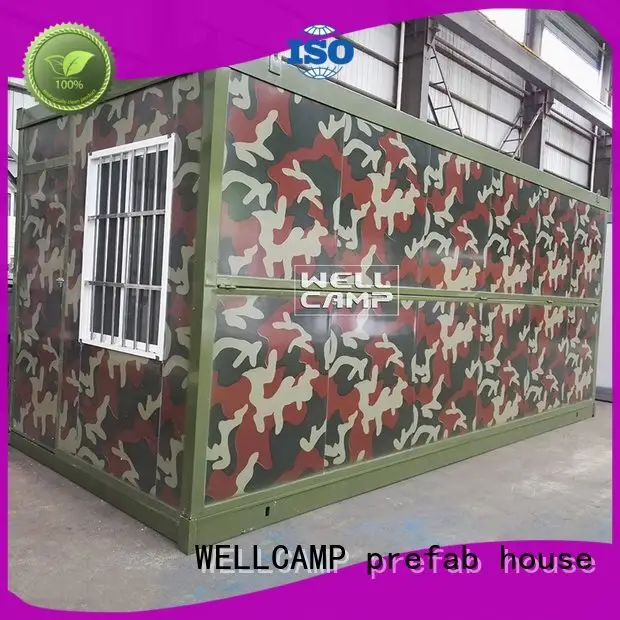

This folding container house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
