WELLCAMP, WELLCAMP prefab house, WELLCAMP container house rock prefab houses for sale wholesale for labour camp
1. prefab houses for sale is of elegant appearance and flat board surface. It is easy to assemble and disassemble and is well received by customers.
2. The wearers will be rewarded with comfort and foot fit, which eventually contributes to foot health in a significant way. The product is easy to move and install
3. The product is resistant to high temperature. It has been fired or sintered under very high temperature, and it has a high melting point. The product helps save energy and cost in the process of installation
4. This product is antimicrobial. The type of materials used and the dense structure of the comfort layer and the support layer discourages dust mites more effectively. Its outer appearance is characterized by vivid color
5. The product is characterized by electromagnetic compatibility. It has passed discharge tests and surge tests, introducing no electromagnetic interference to the environment. It can be freely combined with other products to maximize the space
| Sort | Name | Specification |
Size | Length | 11.08m |
| Width | 7.44m | |
| Height | 2.85m | |
| Total area | 87.98m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Rock wool door | |

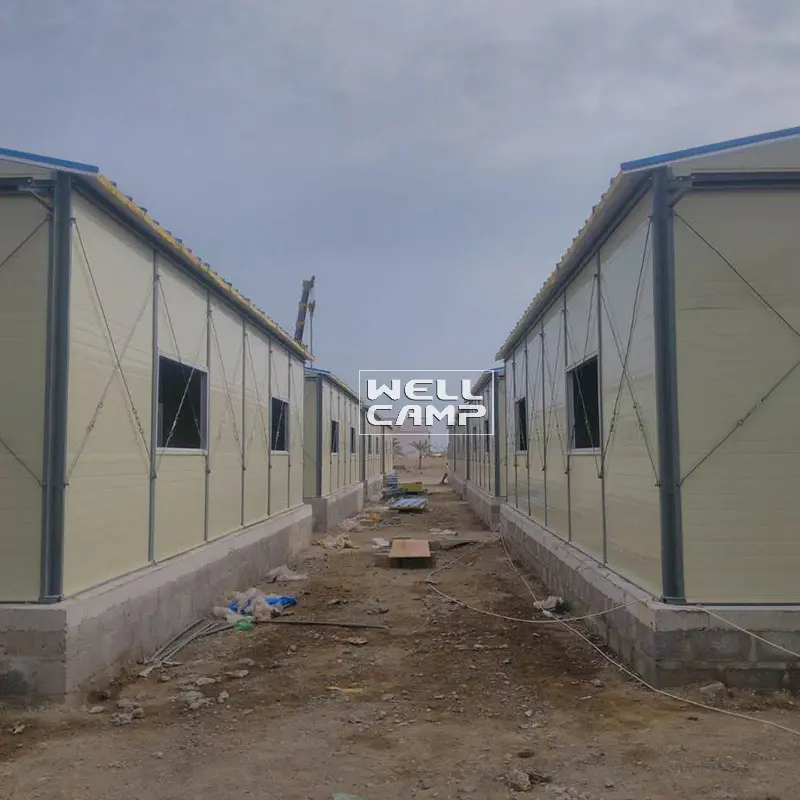

Middle East Prefab Labor Camp Project. There are around 1000 rooms for the labor workers to live in.

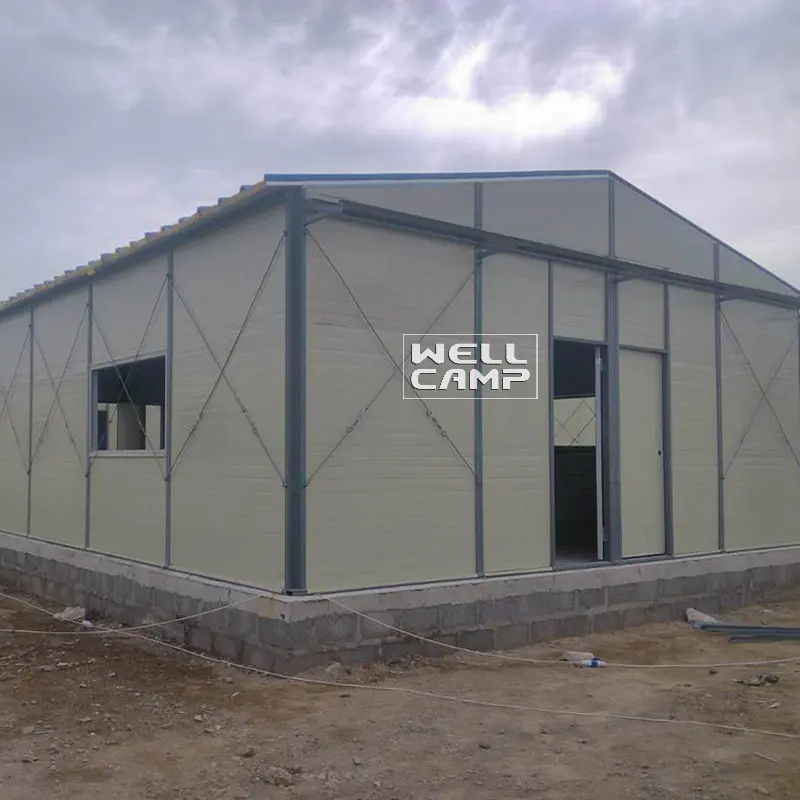

This 88㎡ apartment has a bedroom, toilet and kitchen. It stands on a solid concrete foundation.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2. K house can be done as 1 floor,2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floors=6p, three floors = 9p (1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |

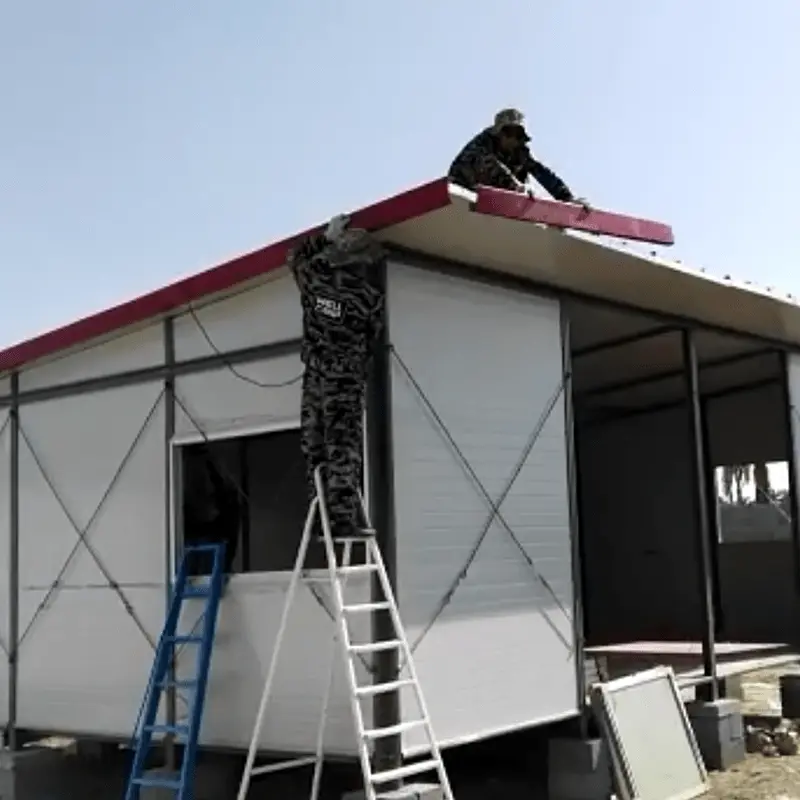

◪ 7.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
K-House 3D model

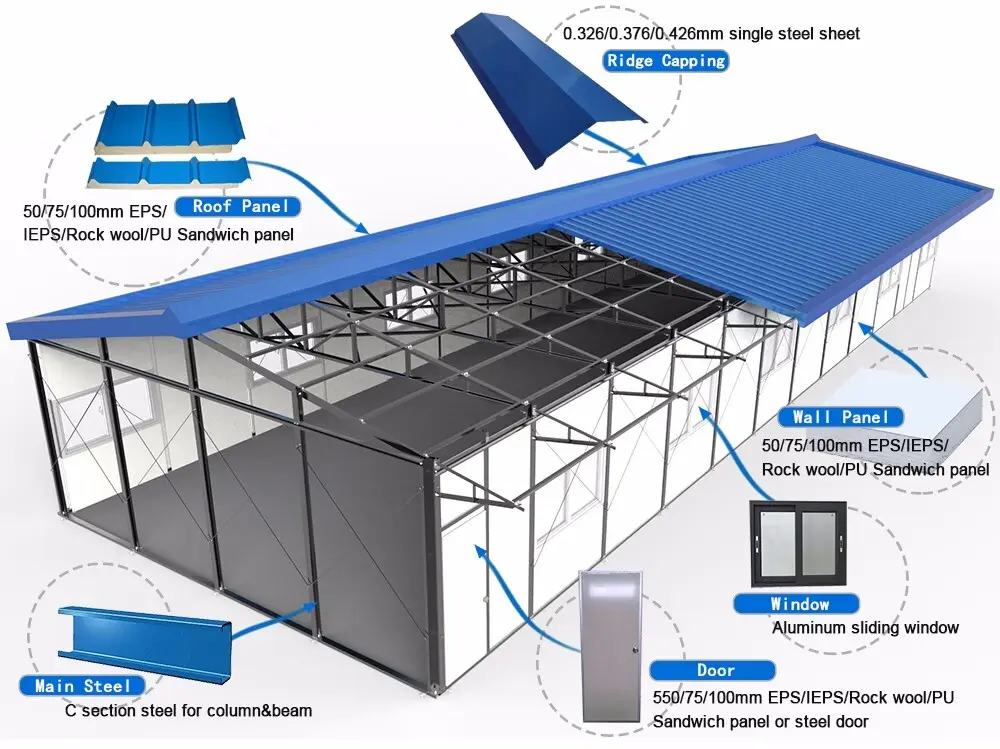

Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

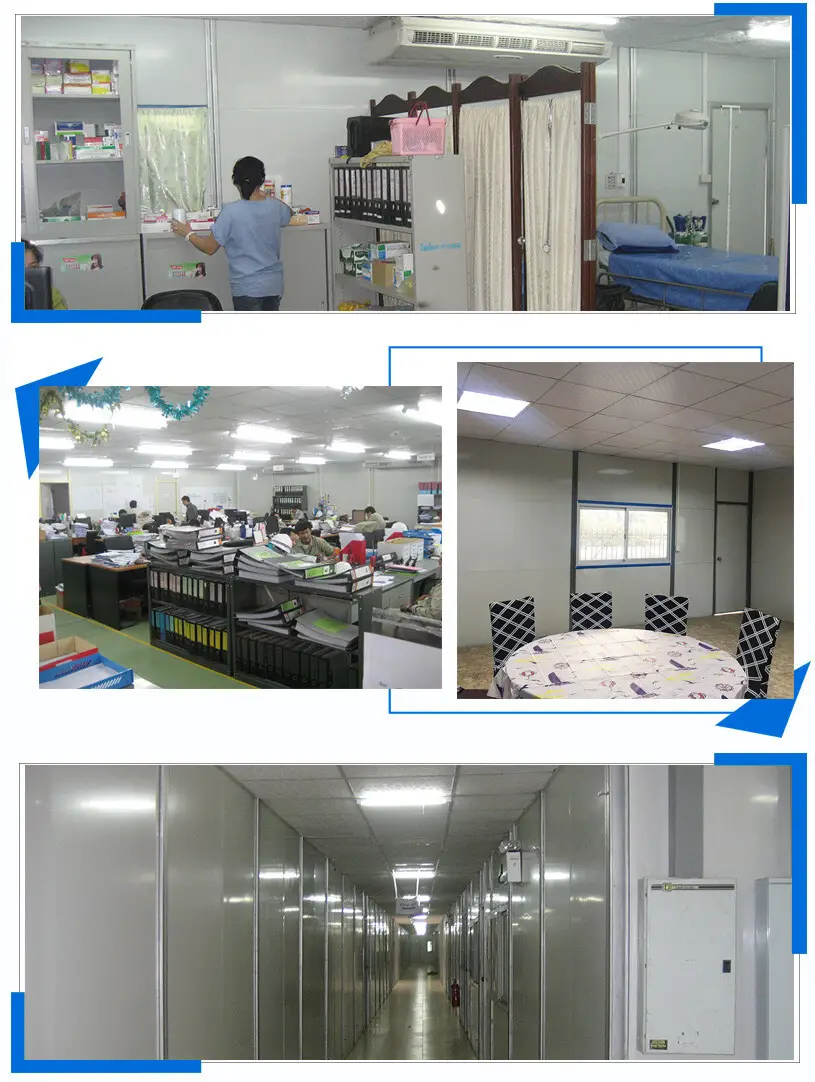

This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house are very environment-friendly. It can be assemed and disassemed for six times. For more information about it, welcome to contact us.
Company Features
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house Professional integrates the production, sales and service of prefab houses for sale . We have a team of development and research members. Leveraging their years of developing experience, they work to develop innovative products per market trends and also constantly upgrade the form of these products.
2. Our company houses a pool of candidates who are highly qualified in customer services. They have gone through professional training and are able to provide advice and are skillful in managing the negative emotion of customers.
3. Our factory has a series of advanced machines. Equipped with the latest technologies, these machines allow us to test products with the best precision. Persistently improving the quality of service has been the main focus of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house. Get quote!
