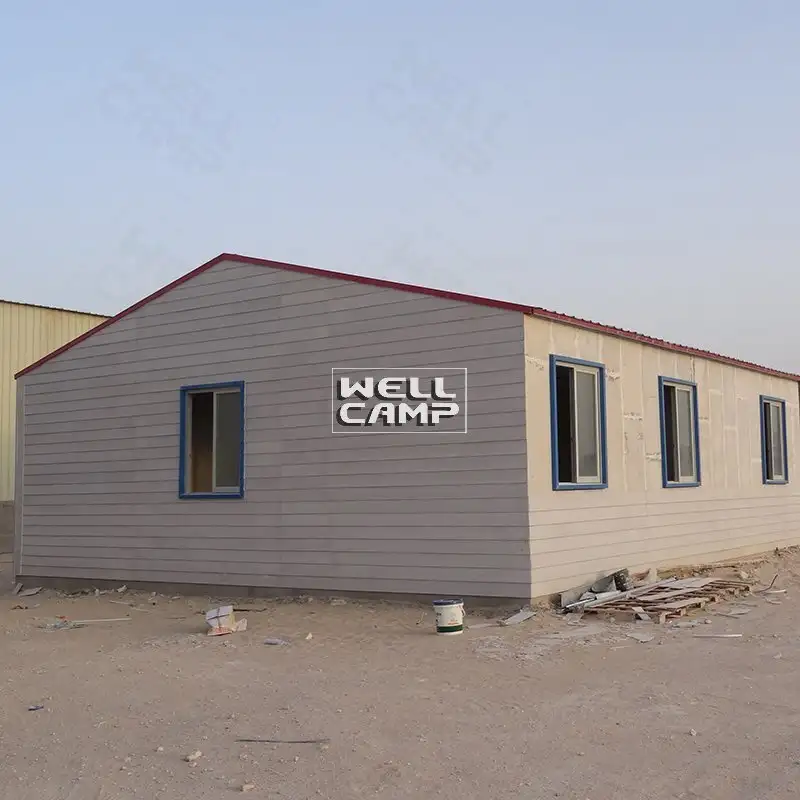

Modular Prefab Concrete Villa Sandwich Panel House, Wellcamp CV-5
| Sort | Name | Specification |
Size | Length | 30.5m |
| Width | 9.76m | |
| Height | 3m | |
| Total area | 297.68m² | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | “C” section steel | |
Panel | Wall panel | 100mm concrete panel with outside decoration sheet |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Steel Door | |
◪1.Modular Villa is easy to build, low cost, significantly time-saving and labor saving comparing to the traditional civil buildings. |
◪2.Internal design can be customized according to your own stylish apartment with bedrooms, living room, kitchen and toilet inside |
◪ 3.External decoration sheet / internal wall paper is used for better appearances of the house. |
◪ 4.Ceramic tile, ceiling, sit down toilet, wash basin and shower are conventional arrangements. |
◪ 5.Easy to build. The house is connected by bolts and screws. 6 labors constitute one team, which can install an area of 100 square meters each day. |
Steel Villa 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Materials for the wall and roof: | EPS/IEPS/Rock wool/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Accessories: | Ceramic tile,ceiling,toilet,wash basin |
Delivery time: | Normally 20-25 days |
This steel villa can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
