Steel Sheet Steel Structure Building With Brick Wall, Wellcamp S-1
| Sort | Name | Specification |
Size | Length | 54m |
| Width | 24m | |
| Height | 6m | |
| Total area | 1296m2 | |
Steel structure | Column | "H" section steel |
| Beam | "H" section steel | |
| Purlin | “C” section steel | |
Panel | Wall panel | 0.426 color steel sheet |
| Roof panel | 0.426 color steel sheet | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Electric roller door | |

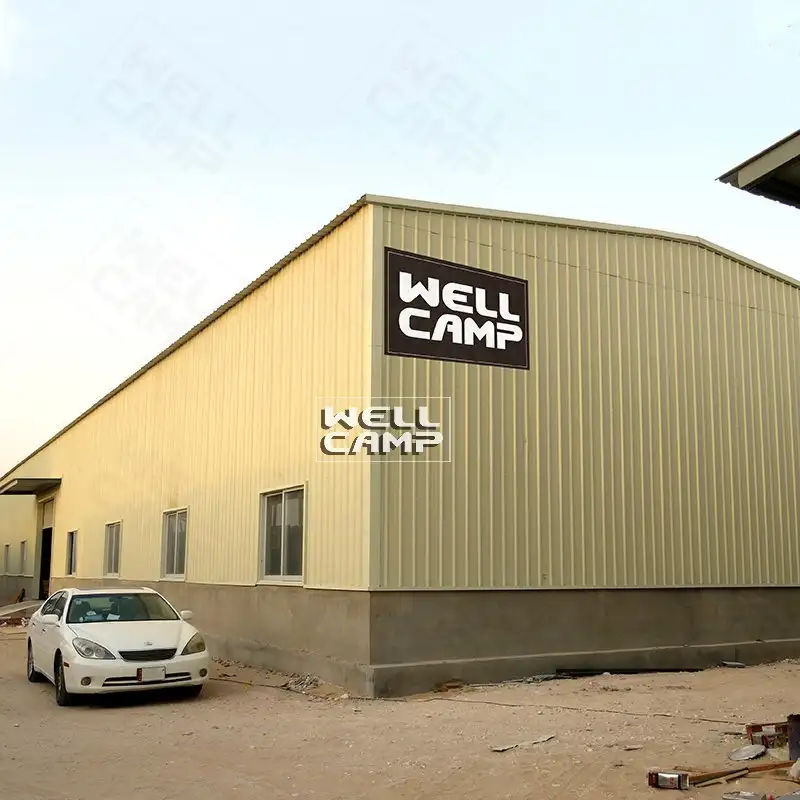

This steel structure workshop is located in Qatar. To keep safer and avoid the water to come inside, it needs to build a one-meter high wall before installing the wall panel.
Wellcamp construction building is a strong steel building provided at a competitive price.
◪1.The structure is strong “H” section steel and “C” section steel. |
◪2.Single steel sheet or sandwich panel for the wall and roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.The height of the brick or concrete wall from 1m to 2m is suggested, for a better waterproofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6.Easy to build. The building is connected by bolts and screws. 6 labors constitute one team, can install areas of 300 square meters each day. |
Workshop 3D model
Material parameters
Main steel："H" section steel for column & beam；
Wall panel：0.426mm single steel sheet；
Roof panel：0.426mm single steel sheet；
Window：Aluminum sliding window；
Door：Electric roller door ;
Ridge capping： 0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 900㎡/HQ |
This workshop can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
