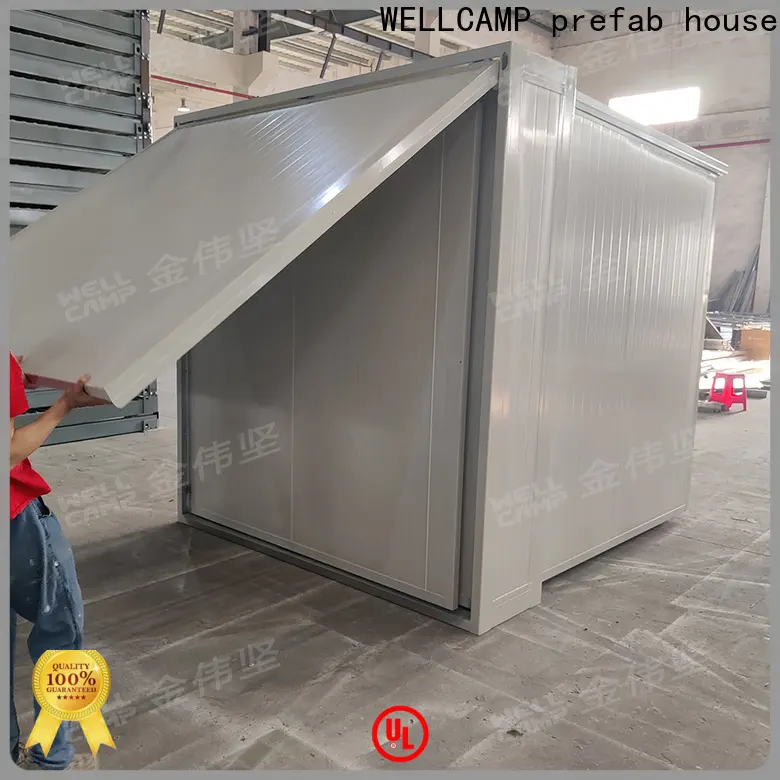

big size detachable container house manufacturer for apartment

Packed size

0.55mX2.3mX2.5H

Structure

Galvanized Steel Structure frame, Square-tube   beam & Sandwich panel combination

Wall

40mm IEPS Sandwich panel

Roof

40mm IEPS Sandwich panel

Door & Windows

40mm IEPS Sandwich panel door + Aluminum   Sliding windows with security bars

Facilities

Standard:
  Integrated electrics system (2 LED Lights, 1 Switch, 2 Sockets, 1 Industrial   inlet, 1 DB Box);
Optional:
  Integrated bathroom, plumbing, kitchen cabinet, bunk bed, etc.

Flooring

15mm DURAPLEX Bamboo Composite Board (Marine   Level)

Accessories

Adjustable Legs, Loading wheels

Performance

200 kg/m² floor bearing   capacity,
  Grade 11 Typhoon enduring,
  Magnitude 8 (Richter Scale) endurance,
  Grade B1 fire resistance. (Design features)

Loading Quantity

20 units can be loaded into 1*40`HC   shipping container

Expansion

Can be used for single unit or multiple   units connected.

Scenarios

Can be used for Emergency shelter, Portable   House, Temporary Office, Movable Accommodation, Refugee Housing, Affordable   Housing, Tiny Shop, Tools Shed, etc.

Density
  (kg/m³)

14-20

Heat Transfer Conductivity
  W/(m²·K)

0.68

Thermal Conductivity
  W/(m·K)

≤0.04

Oxygen Index
  (%)

≤30

Water Absorption Rate
  (%)

≤1.5

Applicable Temperature
  (℃ / ℉)

(-20 to +45) / (-4 to +113)

Bearing Capacity
  (kN/m²)

≤0.5

Compressice Strength
  (mPa)

0.1

Tencile Strenght
  (mPa)

0.1

Bending Rank

Stable

Panel-Cement Motar Adhessiveness Rank

Adhesive

Fire Resistance Rank
  (as ranked in GB 8624-2012)

B1
