Single Pitch Mobile Prefab Homes For Accommodation, Wellcamp K-19

这里可以自定义设置
Single Pitch Mobile Prefab Homes For Accommodation, Wellcamp K-19
Middle East prefabricated labor camp project. The labor camp is for the Qatar labor workers.
B站不支持收货地址
B站不支持库存规格
Brand Name
WELLCAMP
House Style
k Prefabricated House
Model
K-19
MOQ
100 Square Meters
Delivery Time
10-25 days
Port
Nansha/Huangpu Port
Price Term
FOB/CIF/CFR
Payment Term
TT/LC
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
  ◆◆ Product Detail


SortNameSpecification



Size


Length11.08m
Width5.62m
Height2.85m
Total area67.81m2



Steel structure


Column"C" section steel
Beam"C" section steel
Purlin"C" section steel


Panel


Wall panel50mm rock wool sandwich panel
Roof panel50mm rock wool sandwich panel


Accessories


WindowAluminium alloy sliding window
 Door50mm rock wool sandwich door
Payment termsT/T,L/C
MOQ200

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house-Single pitch mobile prefab homes for accom

undefined


undefined


undefined

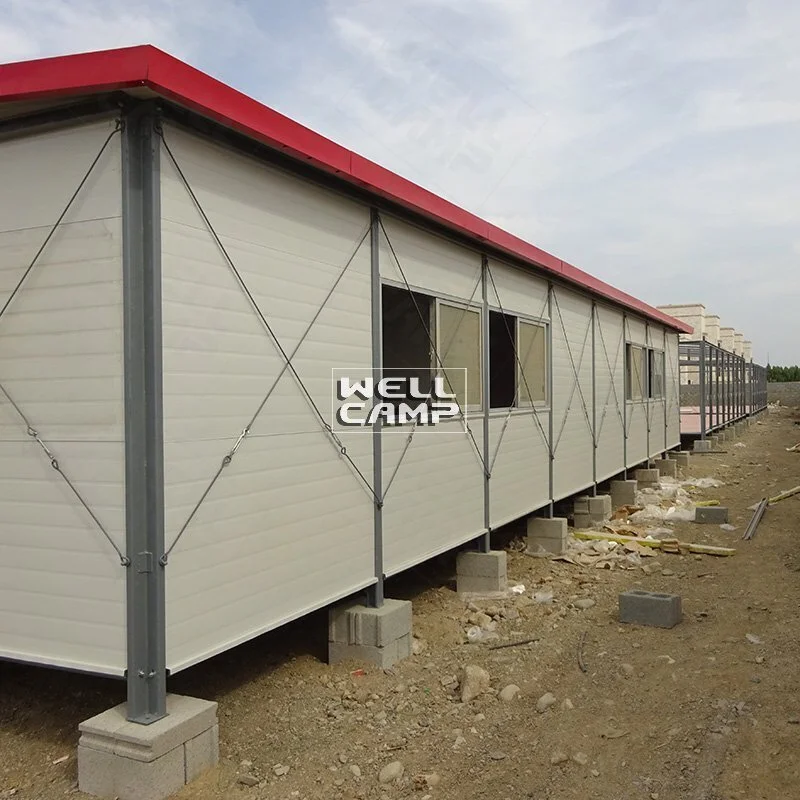

         Middle East Prefabricated Labor Camp Project. The labor camp is for the Qatar labor workers.

         The plan of the house has a toilet, bedroom and living room.

         No cement foundation needed, just use the stone to make the ground flat to avoid the water.



  ◆◆ Product  Features


1. The unit figure for K house dimension is K. 1k=1.82m

2.K house can be done as 1 floor, 2 floors or 3 floors building.

      Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ).

3.K house is commonly used with qualified waterproof, fireproof (EPS/Rock wool/IEPS/PU sandwich panel),

      heat insulation and sound insulation performance.

4.K house uses reusable materials and is more environment-friendly

       compared to traditional buildings. It can be assembled and disassembled six times.

5.K house is Anti worm and ant. All steel structures are well painted and

      anti-rust which can be normally used for over 15 years with very limited amount of building wastes.

6.K house only requires level concrete floor for the foundation.

7.6 labors constitute one team, which can install areas of more than 300 ㎡ each day.


  ◆◆ Main   Material



K-House 3D model


undefined


Material parameters

 Main steel:C section steel for column & beam;

Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Window:Aluminum sliding window;

Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;

Ridge capping:   0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance

Grade 11(wind speed≤120 km/h)

Earthquake resistance

Grade 7

Snow load capacity of roofing

0.6 kn/m²

Live load capacity of roofing

0.6 kn/m²

External and internal wall heat transmission coefficient

0.35 kcal/m²hc

Wall permitted loading

0.6 kn/m²

Second floor load capacity

180kg/m²

Live load of corridor

2.5kn/m²

Density of EPS

12 kg/m²

Delivery time

Normally 20-25 days

Container loading

300-320 m² /HQ


  ◆◆ Product    Installation


Installation Photos


Installation Video




  ◆◆ Real Map   Display


WELLCAMP, WELLCAMP prefab house, WELLCAMP container house-Single pitch mobile prefab homes for accom-8

This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house are very environment-friendly. It can be assemed and disassemed for six times.  For more information about it, welcome to contact us.


  ◆◆ Certificates




Product description

Main Steel Structure

"C" section steel

Size

1K=1.82m; 1P=0.95m

Roof

50mm EPS/Glass wool/Rock wool/IEPS/PU sandwich panel

Wall

50mm EPS/Glass wool/Rock wool/IEPS/PU sandwich panel

Window

Aluminum sliding window

Loading

280-320㎡ / 40HQ

WELLCAMP K prefabricated houses come in different sizes, but has fixed parameters & formula to calculate the dimensions & areas.



The most common design is 3K*12K*6P, dimension 5.62M*22M*5.7H, which is 289.89㎡ area of 2 floors including 2 stairs, can fit in 1*40`HQ as 1 set.

√1*40HQ can load around 280-320㎡.

√The main steel structure is made from "C" section steel.

√With EPS/IEPS/Glass wool/Rock wool/PU sandwich panel for wall & roof!

√6 workers can build 100 square meters in one day!

√Can be done as 1 floor, 2-floor or 3-floor building!

MOST ECONOMIC option for Site Accommodation/Office, Labor Camp set up! We Already sell to Malaysia, India, Thailand, Myanmar, Vietnam, Oman, Saudi Arabia, Qatar, Indonesia, UAE, Philippines, Kenya, Uganda, Tanzania, Congo, Nigeria, Ghana, Mozambique and many other countries.

Application

This Prefabricated K house is the most economic design & is commonly used in construction sites, oil sites, mining sites as workers' quarters, site offices, also used for solider camps, government projects & school projects as labor accommodation, solider accommodation, employee accommodation, student dormitory, teacher`s office, engineers office, site offices, canteen,clinic,laundry room etc.

Main products

Folding Container House, Expandable Container House,

Flat Pack Container House, Detachable Container House, Container Camp, Container Office, Container Shop, Container Classroom, Container School, Security Post, Portable Toilet, Simple Villa, Steel Structure, Prefab Labor Camp, Prefabricated K House, Prefabricated T House...

About us

WELLCAMP, a 100% exporting factory, of Prefab House, Container House, Steel Structure, etc., has over 17 years experiences in the industry. Office in Foshan & factory in Zhao Qing city, WELLCAMP completed projects for Government, Company & Organization in fields like Roads & Bridges, Military/Labor Camps, Job sites & Emergency relieves in the world.



Achieved certificates of ISO9001-2015, CE, ASTM, etc. Our REVOLUTIONARY products: Folding Container House can be set up in 4 minutes, & Expandable container house can expand into bigger space, are widely liked.

View more

Workshop

Certificate

  • Patent
    Patent
  • Patent
    Patent
  • Patent
    Patent
  • ISO
    ISO
  • CE
    CE

Exhibition

  • Canton Fair
    Canton Fair
  • Shanghai Fair
    Shanghai Fair
  • Myanmar Fair
    Myanmar Fair
  • Philippines Fair
    Philippines Fair
  • Qatar Fair
    Qatar Fair

Our team & customer

Packaging & transportation

FAQ

Are you the factory or the trading company?

We are the factory which located in Zhaoqing city, and office in Foshan city, China.

What products do you offer?

We focus on prefab labor camp, steel structure, container houses, modular villa for more than 14 years.

What is your payment term?

The payment term are TT and L/C.

What is your MOQ (minimum order quantity) ?

For the prefab house is 200 square meters and 1X40HQ for container house or small units house.

Do you have the experience to cooperate with the government?

As a famous brand, Wellcamp has successfully completed many projects with government, international joint venture, construction company and charity organization in various fields of oil, military camps and emergency function in Saudi Arabia, UAE, Qatar, Sudan, Mozambique, Congo, Brazil, Mexico, India, Indonesia, Thailand and Philippines.

How is your after-sales service?

1. Any question, welcome to contact us. 24 hours available for you.
2. One order, one special person to follow the whole production.
3. For the house install, we will give you the 3D install drawing. If you need, we also can send you an engineer to teach your workers, but you have to charge the double ticket, accommodation, food and salary.

What information should we offer before you quote?

If you have the drawing, pls give us and tell us the material you use.
If no drawing, pls tell us the usage and the size of the house, then we design for you with the good price.
