Mobile Prefabricated Homes For Worker Dormitory, Wellcamp K-3

这里可以自定义设置
Mobile Prefabricated Homes For Worker Dormitory, Wellcamp K-3

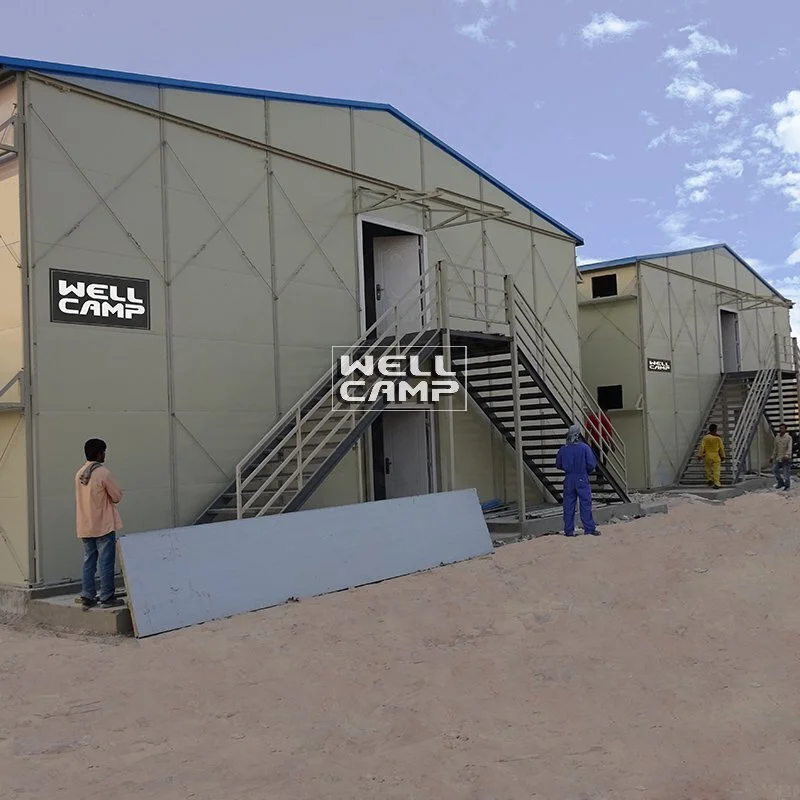

Qatar project. This prefabricated house is for the worker dormitories.Middle wakway and two sides rooms.
B站不支持收货地址
B站不支持库存规格
Brand Name
WELLCAMP
House Style
k Prefabricated House
Model
Wellcamp K-3
MOQ
100 Square Meters
Delivery Time
10-25 days
Port
Nansha/Huangpu Port
Price Term
FOB/CIF/CFR
Payment Term
TT/LC
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
  ◆◆ Product Detail


SortNameSpecification



Size


Length32.92m
Width12.9m
Height5.7m
Total area849.34m2



Steel structure


Column"C" section steel
Beam"C" section steel
Purlin"C" section steel


Panel


Wall panel50mm EPS sandwich panel
Roof panel50mm EPS sandwich panel


Accessories


WindowAluminium alloy sliding window
 DoorDouble opening steel Door outside and sandwich door inside
Payment termsT/T,L/C
MOQ200 square meter

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house-Mobile homes for sale for worker dormitory

undefined


undefined


undefined


     Qatar Project. This prefabricated house is built for the workers' dormitories. There are middle walkway and two siding rooms.

     OOne building has 36 rooms. One room has the capacity of 6-8 labors, serving double bed.


  ◆◆ Product  Features


1. The unit figure for K house dimension is K. 1k=1.82m

2. K house can be done as 1 floor, 2 floors or 3 floors building.Figures for house with different stories: One floor=3P, two floors=6p, three floors = 9p (1P=0.95m ).

3. K house is commonly used with qualified waterproof, fireproof (EPS/Rock        wool/IEPS/PU sandwich panel), heat insulation and sound insulation performance.

4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times.

5. K house is anti-worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with a very limited amount of building wastes.

6. K house only requires level concrete floor for the foundation.

7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day.


  ◆◆ Main   Material



K-House 3D model


undefined


Material parameters

 Main steel:C section steel for column& beam;

Wall panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Roof panel:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel;

Window:Aluminum sliding window;

Door:50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door;

Ridge capping: 0.326/0.376/0.426mm single steel sheet.


  ◆◆ Product  Parameter


Wind resistance

Grade 11(wind speed≤120 km/h)

Earthquake resistance

Grade 7

Snow load capacity of roofing

0.6 kn/m²

Live load capacity of roofing

0.6 kn/m²

External and internal wall heat transmission coefficient

0.35 kcal/m²hc

Wall permitted loading

0.6 kn/m²

Second floor load capacity

180kg/m²

Live load of corridor

2.5kn/m²

Density of EPS

12 kg/m²

Delivery time

Normally 20-25 days

Container loading

300-320 m² /HQ


  ◆◆ Product    Installation


Installation Photos


Installation Video




  ◆◆ Real Map   Display


WELLCAMP, WELLCAMP prefab house, WELLCAMP container house-Mobile homes for sale for worker dormitory-8

This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.


  ◆◆ Certificates




Product description

Main Steel Structure

"C" section steel

Size

1K=1.82m; 1P=0.95m

Roof

50mm EPS/Glass wool/Rock wool/IEPS/PU sandwich panel

Wall

50mm EPS/Glass wool/Rock wool/IEPS/PU sandwich panel

Window

Aluminum sliding window

Loading

280-320㎡ / 40HQ

WELLCAMP K prefabricated houses come in different sizes, but has fixed parameters & formula to calculate the dimensions & areas.



The most common design is 3K*12K*6P, dimension 5.62M*22M*5.7H, which is 289.89㎡ area of 2 floors including 2 stairs, can fit in 1*40`HQ as 1 set.

√1*40HQ can load around 280-320㎡.

√The main steel structure is made from "C" section steel.

√With EPS/IEPS/Glass wool/Rock wool/PU sandwich panel for wall & roof!

√6 workers can build 100 square meters in one day!

√Can be done as 1 floor, 2-floor or 3-floor building!

MOST ECONOMIC option for Site Accommodation/Office, Labor Camp set up! We Already sell to Malaysia, India, Thailand, Myanmar, Vietnam, Oman, Saudi Arabia, Qatar, Indonesia, UAE, Philippines, Kenya, Uganda, Tanzania, Congo, Nigeria, Ghana, Mozambique and many other countries.

About us

WELLCAMP, a 100% exporting factory, of Prefab House, Container House, Steel Structure, etc., has over 17 years experiences in the industry. Office in Foshan & factory in Zhao Qing city, WELLCAMP completed projects for Government, Company & Organization in fields like Roads & Bridges, Military/Labor Camps, Job sites & Emergency relieves in the world.



Achieved certificates of ISO9001-2015, CE, ASTM, etc. Our REVOLUTIONARY products: Folding Container House can be set up in 4 minutes, & Expandable container house can expand into bigger space, are widely liked.
